Product Model

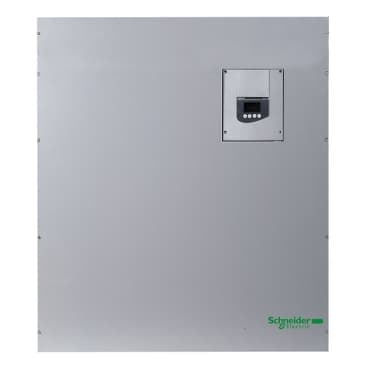

ATS48C79Y
Selling Points
- 1Advanced Torque Control: The Altistart 48 Torque Control System (TCS) ensures smooth starting and stopping of asynchronous motors.
- 2High Power Rating: Suitable for motors up to 800 HP at 575V and 710 kW at 690V, ideal for heavy-duty applications.
- 3Comprehensive Protection: Includes thermal protection, underload and overload protection, and locked rotor protection for motor safety.
- 4Versatile Communication: Supports Modbus, Ethernet, Fipio, Profibus DP, and DeviceNet for seamless integration with control systems.
- 5Easy Installation: Factory set for immediate start-up and simplified customization using the PowerSuite software or built-in display.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Altistart 48 | Product or Component Type | Soft starter |
Product destination | Asynchronous motors | Product Specific Application | Heavy duty industry and pumps |
Device short name | ATS48 | Utilisation category | AC-53A |
Ue power supply voltage | 208...690 V - 15...10 % | power supply frequency | 50...60 Hz - 5...5 % |
Motor power kW | 220 kW 230 V for standard applications<br />355 kW 400 V for severe applications<br />400 kW 400 V for standard applications<br />400 kW 440 V for severe applications<br />500 kW 440 V for standard applications<br />500 kW 500 V for standard applications<br />500 kW 525 V for standard applications<br />630 kW 660 V for severe applications<br />630 kW 690 V for severe applications<br />710 kW 660 V for standard applications<br />710 kW 690 V for standard applications | Maximum Horse Power Rating | 200 hp 208 V for severe applications<br />250 hp 208 V for standard applications<br />250 hp 230 V for severe applications<br />300 hp 230 V for standard applications<br />500 hp 460 V for severe applications<br />600 hp 460 V for standard applications<br />600 hp 575 V for severe applications<br />800 hp 575 V for standard applications |
Device connection | In the motor supply line | Protection type | Phase failure line<br />Thermal protection motor<br />Thermal protection starter |
Standards | IEC 60947-4-2 | Product Certifications | CSA<br />UL<br />TCF<br />CCC<br />DNV<br />GOST<br />SEPRO<br />C-tick<br />NOM 117 |
marking | CE | Discrete input number | 5 |
Discrete input type | PTC, 750 Ohm 77 °F (25 °C)<br />Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm | Discrete input logic | Positive logic Stop, Run, LI3, LI4 < 5 V <= 2 mA > 11 V, >= 5 mA |
Minimum switching current | 10 mA 6 V DC relay outputs | Discrete output number | 2 |
Discrete output type | LO1) logic output 0 V common configurable<br />LO2) logic output 0 V common configurable<br />R1) relay outputs fault relay NO<br />R2) relay outputs end of starting relay NO<br />R3) relay outputs motor powered NO | Analogue output type | Current output AO 0-20 mA or 4-20 mA 500 Ohm |
communication port protocol | Modbus | Connector Type | 1 RJ45 |
Communication data link | Serial | Physical interface | RS485 multidrop |
Transmission Rate | 4800, 9600 or 19200 bps | Function Available | External bypass (optional) |
Operating position | Vertical +/- 10 degree | Height | 35.04 in (890 mm) |
Width | 30.3 in (770 mm) | Depth | 12.4 in (315 mm) |
Net Weight | 253.5 lb(US) (115 kg) | Electromagnetic compatibility | Conducted and radiated emissions level A IEC 60947-4-2<br />Damped oscillating waves level 3 IEC 61000-4-12<br />Electrostatic discharge level 3 IEC 61000-4-2<br />Immunity to electrical transients level 4 IEC 61000-4-4<br />Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3<br />Voltage/current impulse level 3 IEC 61000-4-5 |
Relative humidity | 0…95 % without condensation or dripping water IEC 60068-2-3 | Ambient air temperature for operation | 104…140 °F (40…60 °C) with current derating of 2 % per °C)<br />14…104 °F (-10…40 °C) without derating) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Operating altitude | <= 3280.84 ft (1000 m) without derating<br />> 3280.84...6561.68 ft (> 1000...2000 m) with current derating of 2.2 % per additional 100 m |
