Product Model

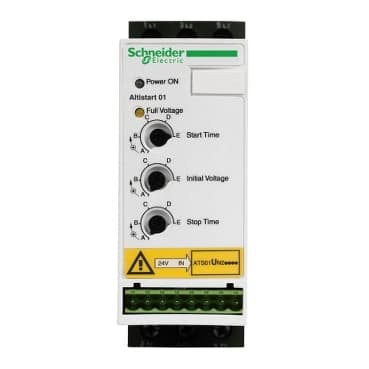

ATSU01N209LT
Selling Points
- 1Efficient Motor Control: Limits starting current and deceleration for smoother motor operation.
- 2Adjustable Timing: Set starting and deceleration times from 1 to 10 seconds for precise control.
- 3Integrated Bypass: Reduces noise and heat dissipation, ensuring reliable performance.
- 4Versatile Applications: Suitable for conveyors, conveyor belts, pumps, fans, compressors, and more.
- 5Comprehensive Certifications: Meets IEC/EN 60947-4-2 standards and carries UL, CSA, C-Tick, and CCC certifications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Altistart U01 and TeSys U | Product or Component Type | Soft starter |
Product destination | Asynchronous motors | Product Specific Application | Simple machine |
Device short name | ATSU01 | Phase | 3 phase |
[Us] rated supply voltage | 200...480 V - 10...10 % | Motor power kW | 4 kW, 3 phase 400 V<br />1.5 kW, 3 phase 230 V |
Maximum Horse Power Rating | 2 hp, 3 phase 230 V<br />5 hp, 3 phase 460 V | IcL starter rating | 9 A |
Utilisation category | AC-53B EN/IEC 60947-4-2 | Current consumption | 65 mA |
Type of start | Start with voltage ramp | Power dissipation in W | 1.5 W at full load and at end of starting<br />91.5 W in transient state |
Assembly style | With heat sink | Function Available | Integrated bypass |
Supply voltage limits | 180…528 V | Supply frequency | 50...60 Hz - 5...5 % |
Network Frequency | 47.5...63 Hz | Output voltage | <= power supply voltage |
[Uc] control circuit voltage | 24 V DC +/- 10 % | Starting time | 1 s / 100<br />5 s / 20<br />10 s / 10<br />Adjustable from 1 to 10 s |
Deceleration time symb | Adjustable from 1 to 10 s | Starting torque | 30...80 % of starting torque of motor connected directly on the line supply |
Discrete input type | Logic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm | Discrete input voltage | 24...40 V |
Input output isolation | Galvanic between power and control | Discrete input logic | Positive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA |
Discrete output current | 2 A DC-13<br />3 A AC-15 | Discrete output type | Open collector logic LO1 end of starting signal<br />Relay outputs R1A, R1C NO |
Discrete output voltage | 24 V 6...30 V) open collector logic | Minimum switching current | 10 mA 6 V DC relay outputs |
Maximum switching current | Relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive<br />Relay outputs 2 A 250 V AC AC-15 cos phi = 0.5 20 ms inductive | Maximum switching voltage | 440 V relay outputs |
Display type | 1 LED Green)starter powered up<br />1 LED Yellow)nominal voltage reached | Tightening torque | 4.4 lbf.in (0.5 N.m)<br />16.8…22.1 lbf.in (1.9…2.5 N.m) |
Electrical connection | 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit<br />Screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit<br />4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit<br />Screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit<br />Screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit<br />4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit<br />Screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit<br />4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit<br />4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit<br />Screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit | marking | CE |
Operating position | Vertical +/- 10 degree | Height | 9.2 in (234 mm) |
Width | 1.8 in (45 mm) | Depth | 5.9 in (150 mm) |
Net Weight | 0.75 lb(US) (0.34 kg) | Motor power range AC-3 | 1.1…2 kW 200…240 V 3 phase<br />2.2…3 kW 380…440 V 3 phase<br />4…6 kW |
Motor starter type | Soft starter | Electromagnetic compatibility | Conducted and radiated emissions level B CISPR 11<br />Conducted and radiated emissions level B IEC 60947-4-2<br />Damped oscillating waves level 3 IEC 61000-4-12<br />Electrostatic discharge level 3 IEC 61000-4-2<br />EMC immunity EN 50082-1<br />EMC immunity level B EN 50082-2<br />Harmonics level 3 IEC 1000-3-2<br />Harmonics level 3 IEC 1000-3-4<br />Immunity to electrical transients level 4 IEC 61000-4-4<br />Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3<br />Voltage/current impulse level 3 IEC 61000-4-5<br />Conducted and radiated emissions level 3 IEC 61000-4-6<br />Immunity to conducted interference caused by radio-electrical fields level 4 IEC 61000-4-11 |
Standards | EN/IEC 60947-4-2 | Product Certifications | UL<br />C-tick<br />CSA<br />CCC |
IP Degree of Protection | IP20 | Pollution degree | 2 EN/IEC 60947-4-2 |
Vibration resistance | 1 gn 13…150 Hz)EN/IEC 60068-2-6<br />1.5 mm peak to peak 3…13 Hz)EN/IEC 60068-2-6 | Shock resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
Relative humidity | 5…95 % without condensation or dripping water EN/IEC 60068-2-3 | Ambient air temperature for operation | 14…104 °F (-10…40 °C) without derating)<br />104…122 °F (40…50 °C) with current derating of 2 % per °C) |
Ambient air temperature for storage | -13…158 °F (-25…70 °C) EN/IEC 60947-4-2 | Operating altitude | <= 3280.84 ft (1000 m) without derating<br />> 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m |
