Product Model

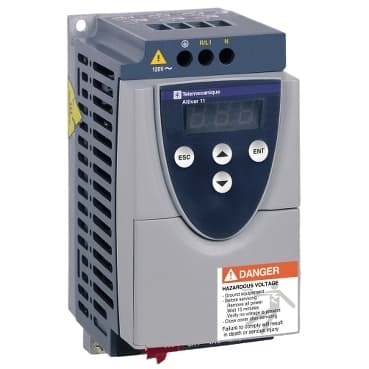

ATV11PU09F1U
Selling Points
- 1The ATV11PU09F1U features a compact design with a built-in heat sink, maximizing space efficiency.
- 2Equipped with comprehensive protection features, including transient over-torque capability and prospective line Isc for short circuit protection.
- 3Designed without an EMC filter, providing flexibility in installation and compatibility with various electrical setups.
- 4Offers adjustable switching frequencies from 2 to 16 kHz, ensuring efficient operation and extended equipment lifespan.
- 5Suitable for single-phase motor control applications, ideal for industrial and commercial settings where three-phase power is not available.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Altivar | Product or Component Type | Variable speed drive |
Product Specific Application | Simple machine | Component name | ATV11 |
Application market | USA market | Mounting Support | Base plate |
EMC filter | Without EMC filter | Built-in fan | Without |
Phase | Single phase | [Us] rated supply voltage | 100...120 V - 15...10 % |
Supply frequency | 50...60 Hz - 5...5 % | Motor power kW | 0.37 kW |
Maximum Horse Power Rating | 0.5 hp | Line current | 9 A 100 V, Isc = 1 kA |
Nominal output current | 2.4 A 230 V motor 4 kHz | Maximum transient current | 3.6 A 60 s |
Power dissipation in W | 23 W at nominal load | Switching frequency | 2...16 kHz adjustable<br />4...16 kHz with derating factor |
Braking torque | 150 % of nominal motor torque with braking resistor at high inertia<br />20 % of nominal motor torque without braking resistor at no load<br />80 % of nominal motor torque with braking resistor at no load | Asynchronous motor control profile | Sensorless flux vector control with PWM type motor control signal |
Electrical connection | Terminal 1.5 mm², AWG 14 AI1, RA-RC, LI1...LI4, DO)<br />Terminal 1.5 mm², AWG 14 L1, L2, L3, U, V, W, PA, PC) | Supply | Internal supply for logic inputs 15 V +/- 15 %) 100 mA overload and short-circuit protection<br />Internal supply for reference potentiometer (2.2 to 10 kOhm) 5...5.25 VDC 10 mA overload and short-circuit protection |
Analogue input type | Configurable current AI1 4...20 mA 250 Ohm without adding resistor<br />Configurable voltage AI1 0...5 V 40000 Ohm only with internal supply<br />Configurable current AI1 0...20 mA 250 Ohm<br />Configurable voltage AI1 0...10 V 40000 Ohm | Sampling duration | AI1 20 ms analog<br />LI1...LI4 20 ms discrete |
Response time | 20 ms DO | Linearity error | DO +/- 1 % output<br />AI +/- 5 % input |
Discrete input type | Assignable Ll1 forward 5000 Ohm 15 V 24 V<br />Assignable Ll2 reverse 5000 Ohm 15 V 24 V<br />Assignable Ll3/Ll4 4 preset speeds 5000 Ohm 15 V 24 V | Discrete input logic | Negative LI1...LI4), > 11 V, < 5 V<br />Positive logic (source) LI1...LI4), < 5 V, > 11 V |
Discrete output type | Assignable as external voltage DO 30 V max, 30 mA<br />Assignable as open collector logic output DO 100 Ohm, 50 mA max<br />Factory set as PWM open collector output DO at 2 kHz 10 mA max<br />Protected relay logic RA-RC 1 NO<br />Assignable as internal voltage DO | Minimum switching current | RA-RC 10 mA 24 V DC |
Maximum switching current | 2 A 250 V AC inductive cos phi = 0.4 7 ms RA-RC<br />2 A 30 V DC inductive cos phi = 0.4 7 ms RA-RC<br />5 A 250 V AC resistive cos phi = 1 0 ms RA-RC<br />5 A 30 V DC resistive cos phi = 1 0 ms RA-RC | Protection type | Line supply overvoltage drive<br />Line supply undervoltage drive<br />Overcurrent between output phases and earth drive<br />Overheating protection drive<br />Short-circuit between motor phases drive<br />Thermal protection motor |
Frequency resolution | Display unit 0.1 Hz<br />Analog input converter A/D, 10 bits | Electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test level 3 EN/IEC 61000-4-5<br />Electrical fast transient/burst immunity test level 4 EN/IEC 61000-4-4<br />Electrostatic discharge immunity test level 3 EN/IEC 61000-4-2<br />Radiated radio-frequency electromagnetic field immunity test level 3 EN/IEC 61000-4-3 |
Maximum motor cable length | 65.6 ft (20 m) with additional EMC filter from 2 to 16 kHz EN 55011 class A group 1<br />16.4 ft (5 m) with additional EMC filter from 2 to 16 kHz EN 55011 class B | Vibration resistance | 1 gn 13…200 Hz)EN/IEC 60068-2-6<br />1.5 mm peak to peak 3…13 Hz)EN/IEC 60068-2-6 |
Shock resistance | 15 gn 11 ms EN/IEC 60068-2-27 | Relative humidity | 5…93 % without condensation IEC 60068-2-3<br />5…93 % without dripping water IEC 60068-2-3 |
Ambient air temperature for operation | 14…104 °F (-10…40 °C) without derating<br />104…122 °F (40…50 °C) by removing the protective cover from the top of the drive<br />122…140 °F (50…60 °C) by removing the protective cover from the top of the drive with current derating of 2.2 % per °C | Operating altitude | <= 3280.84 ft (1000 m) without derating<br />> 3280.84 ft (1000 m) with current derating 1 % per 100 m |
Product destination | Asynchronous motors | Supply voltage limits | 85…130 V |
Network frequency limits | 47.5…63 Hz | Speed drive output frequency | 0…200 Hz |
Nominal switching frequency | 4 kHz | Speed range | 1…20 |
Transient overtorque | 150...170 % of nominal motor torque | Regulation loop | Adjustable frequency<br />Factory-set with the speed loop stability and gain<br />Possible correction for machines with high resistive torque/inertia/fast cycles |
Motor slip compensation | Preset in factory<br />Adjustable | Prospective line Isc | 1 kA |
Output voltage | <= 2 x power supply voltage | Insulation | Electrical between power and control |
Analogue input number | 1 | Discrete input number | 4 |
Discrete output number | 2 | Acceleration and deceleration ramps | Linear from 0 to 99.9 s |
Braking to standstill | By DC injection | Insulation resistance | >= 500 mOhm |
marking | CE | Operating position | Vertical +/- 10 degree |
CAD overall width | 2.8 in (72 mm) | CAD overall height | 5.6 in (142 mm) |
CAD overall depth | 4.0 in (101 mm) | Outer dimension | 142 x 72 x 101 mm |
Standards | EN 50178 | Product Certifications | C-tick<br />CSA<br />UL<br />N998 |
IP Degree of Protection | IP20 | Ambient Air Temperature for Storage | -13…149 °F (-25…65 °C) |
Specifications may be subject to change without notice
