Product Model

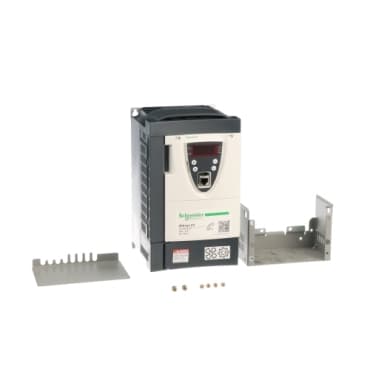

ATV61HU40N4T1
Selling Points
- 1Control motor speed with precision and reliability.
- 2Includes an energy-saving mode with quadratic U/f control for optimal power use.
- 3Supports Modbus, CANopen, BACnet, and more through optional communication cards.
- 4Features overload protection up to 120% for 60 seconds and transient overtorque up to 130%.
- 5Use SoMove software for PC configuration and SoMove Mobile for remote configuration via mobile phone.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Asynchronous motor control profile | Variable torque standard | Device short name | ATV61 |
Range of Product | Altivar 61 | Line Rated Current | 10.5 A |
Cable entry | Type 1 conduit entry outdoor | communication port protocol | Modbus<br />CANopen |
Input voltage | 400/480 V AC | Keypad Type | LCD keypad |
Maximum Horse Power Rating | 5 hp | Motor power kW | 4 kW |
Phase | 3 phase input<br />3 phase output | Output voltage | <= rated supply voltage |
EMC filter | Class A EMC filter integrated | IP Degree of Protection | IP20 |
NEMA Degree of Protection | No enclosure rating (open device) | Protective treatment | None |
Specifications may be subject to change without notice
