Product Model

ATV66U90N4F

Manufacturer

schneider

Category

Variable Speed Drives

Product ID

29062

In Stock
Last updated: 2025/4/29
View Specifications

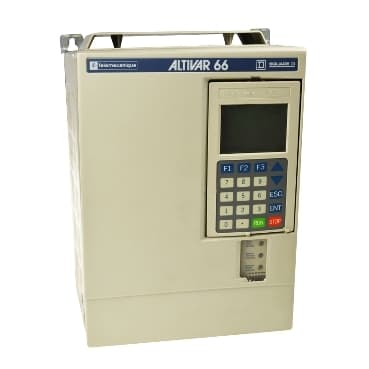

schneider ATV66U90N4F

Selling Points

  • 1High Efficiency: Achieve efficiency rates greater than 96% with the ALTIVAR 66.
  • 2Wide Frequency Range: Operate from 0.1 to 400 Hz in constant torque configuration and 0.1 to 75/90 Hz in variable torque configuration.
  • 3Advanced Protection: Includes electronic thermal protection and short circuit protection for reliable operation.
  • 4User-Friendly Interface: Features a keypad display with self-diagnostics and full fault messages in seven languages.
  • 5Versatile Communication: Supports multidrop serial link and Modbus protocol for seamless integration with various systems.
Product Details
ATV66U90N4F
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Altivar 66
Product or Component Type
Variable speed drive
Product destination
Asynchronous motors
[Us] rated supply voltage
380...460 V - 10...10 %
Supply frequency
50...60 Hz - 5...5 %
Network Frequency
47.5...63 Hz
Phase
3 phase
Motor power kW
7.5 kW 380...460 V
Maximum Horse Power Rating
10 hp
Line current
34.7 A 380 V<br />30 A 460 V
Apparent power
9 kVA 400 V
Continuous output current
24.2 A 400 V
Output frequency
0…0.3 kHz
Nominal switching frequency
2.5 kHz
Switching frequency
0.5...4 kHz<br />8...16 kHz with current derating
Local signalling
1 graphic display terminal
Output voltage
400 V
communication port protocol
Modbus
Physical interface
RS485 multidrop serial link
Transmission Rate
9.6...19.2 kbauds
Height
12.8 in (325 mm)
Width
9.2 in (234 mm)
Depth
7.7 in (195 mm)
Option card
Communication card Profibus DP<br />Communication card CANopen<br />Communication card DeviceNet<br />Communication card Ethernet<br />Communication card Fipio<br />Communication card Uni-Telway<br />Communication card Interbus-S<br />Communication card Modbus Plus<br />Communication card AS-Interface
IP degree of protection
IP00
Ambient air temperature for operation
32…104 °F (0…40 °C)
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Operating altitude
<= 3280.84 ft (1000 m)<br />> 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m

Specifications may be subject to change without notice
