Product Model

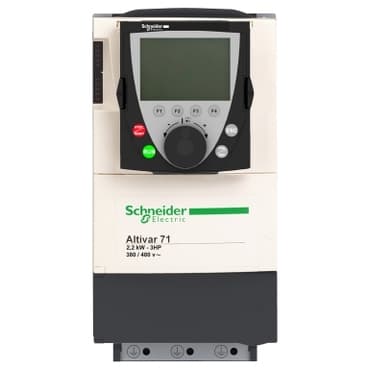

ATV71H075N4T1
Selling Points
- 1High-Performance AC Drive: Designed for demanding applications with precise speed control and efficient operation.
- 2Wide Output Frequency Range: Supports frequencies from 0.1 to 599 Hz, ensuring flexibility in various operational demands.
- 3Integrated EMC Filter: Minimizes electrical interference and ensures compliance with industry standards.
- 4Versatile Motor Compatibility: Compatible with both asynchronous and synchronous motors, making it adaptable to various machine types.
- 5Robust Design with Heat Sink: Facilitates efficient thermal management, enhancing durability and reliability in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Asynchronous motor control profile | Constant torque standard | Device short name | ATV71 |
Range of Product | Altivar 71 | Line Rated Current | 2.3 A |
Cable entry | Type 1 conduit entry outdoor | communication port protocol | CANopen<br />Modbus |
Input voltage | 400/480 V AC | Keypad Type | LCD keypad |
Maximum Horse Power Rating | 1 hp | Motor power kW | 0.75 kW |
Phase | 3 phase output<br />1 phase input | Output voltage | <= rated supply voltage |
EMC filter | Class A EMC filter integrated | IP Degree of Protection | IP20 |
NEMA Degree of Protection | No enclosure rating (open device) | Protective treatment | None |
Specifications may be subject to change without notice
