Product Model

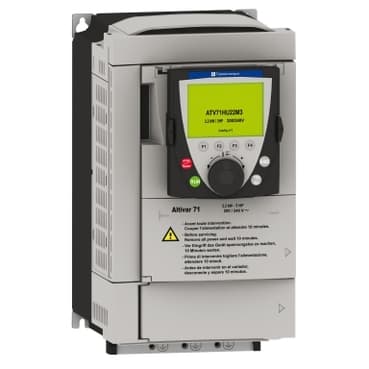

ATV71HU22M3T1
Selling Points
- 1High Performance AC Drive: Ideal for constant torque applications.
- 2Versatile Voltage Rating: Compatible with 208/240VAC.
- 3Powerful Rating: 3HP (2HP at 1-phase) and 2.2kW (1.5kW at 1-phase).
- 4Integrated EMC Filter: Ensures reliable operation in various environments.
- 5Graphic Terminal Included: Easy control and monitoring options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Asynchronous motor control profile | Constant torque standard | Device short name | ATV71 |
Range of Product | Altivar 71 | Line Rated Current | 11 A<br />8 A 1 phase |
Cable entry | Type 1 conduit entry outdoor | communication port protocol | Modbus<br />CANopen |
Input voltage | 208/240 V AC | Keypad Type | LCD keypad |
Maximum Horse Power Rating | 3 hp<br />2 hp, 1 phase | Motor power kW | 2.2 kW<br />1.5 kW, 1 phase |
Phase | 3 phase output<br />1 phase input<br />3 phase | Output voltage | <= rated supply voltage |
EMC filter | Class A EMC filter integrated | IP Degree of Protection | IP20 |
NEMA Degree of Protection | No enclosure rating (open device) | Protective treatment | None |
Specifications may be subject to change without notice
