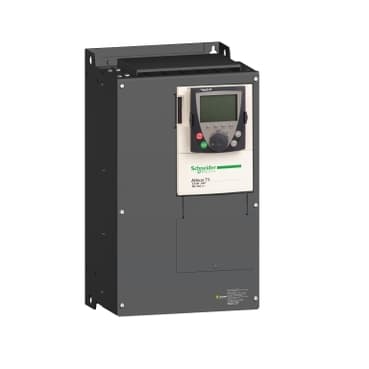

schneider ATV71HU30S6X

Selling Points

  • 1Achieve up to 95% efficiency with the Altivar ATV71HU30S6X, reducing energy costs and environmental impact.
  • 2Adjust speed from 2.5 to 6 kHz, ensuring optimal performance in various industrial conditions.
  • 3Designed for continuous operation, this drive can handle transient overtorque of up to 220% of nominal motor torque.
  • 4Easily adjust switching frequency during operation from 1 to 16 kHz, enhancing control and precision.
  • 5Compact dimensions make it ideal for space-constrained industrial settings, ensuring seamless integration into your system.
Product Details
ATV71HU30S6X
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Altivar 71
Product or Component Type
Variable speed drive
Product Specific Application
Complex, high-power machines
Component name
ATV71
Motor power kW
3 kW, 3 phase 500 V
Maximum motor cable length
98.4 ft (30 m) shielded cable<br />164.04 ft (50 m) unshielded cable
power supply voltage
500...600 V - 15...10 %
Phase
3 phase
Line current
9.9 A 500 V 3 phase 3 kW<br />10 A 600 V 3 phase 3 kW
EMC filter
Without EMC filter
Assembly style
With heat sink
Variant
Built-in unit with forced cooling
Prospective line Isc
22 kA 3 phase
Nominal output current
5.8 A 4 kHz 500 V 3 phase 3 kW
Maximum transient current
8.7 A 60 s 3 phase 3 kW<br />9.6 A 2 s 3 phase 3 kW
Output frequency
0.1…500 Hz
Nominal switching frequency
4 kHz
Switching frequency
2.5...6 kHz adjustable<br />4...6 kHz with derating factor
Asynchronous motor control profile
Flux vector control without sensor, standard<br />Voltage/frequency ratio, 5 points<br />Flux vector control without sensor, 2 points<br />Voltage/frequency ratio, 2 points<br />Flux vector control without sensor, ENA (energy Adaptation) system<br />Flux vector control with sensor, standard<br />Voltage/frequency ratio - Energy Saving, quadratic U/f
Type of polarization
No impedance Modbus
Product destination
Asynchronous motors<br />Synchronous motors
power supply voltage limits
425…660 V
power supply frequency
50...60 Hz +/-5 %
power supply frequency limits
47.5...63 Hz
Speed range
1…100 in open-loop mode, without speed feedback
Speed accuracy
+/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn
Torque accuracy
+/- 15 % in open-loop mode, without speed feedback
Transient overtorque
220 % +/- 10 % 2 s<br />170 % +/- 10 % 60 s
Braking torque
30 % without braking resistor<br /><= 125 % with braking resistor
Synchronous motor control profile
Vector control with sensor, standard<br />Vector control without sensor, standard
Regulation loop
Frequency PI regulator
Motor slip compensation
Automatic whatever the load<br />Not available in voltage/frequency ratio (2 or 5 points)<br />Can be suppressed<br />Adjustable
diagnostic
for operation function, status and configuration LCD display unit
Output voltage
<= power supply voltage
Insulation
Electrical between power and control
type of cable for mounting in an enclosure
With an IP21 or an IP31 kit 3 IEC cable 104 °F (40 °C), copper 70 °C / PVC<br />Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC<br />Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR<br />With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC
Electrical connection
Terminal 2.5 mm², AWG 14 AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)<br />Terminal 16 mm², AWG 4 L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB)
Tightening torque
5.3 lbf.in (0.6 N.m) AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)<br />26.6 lbf.in (3 N.m), 26.5 lb.in L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB)
Supply
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection<br />Internal supply 24 V DC 21…27 V), <200 mA overload and short-circuit protection<br />External supply 24 V DC 19…30 V)
Analogue input number
2
Analogue input type
AI1-/Al1+ bipolar differential voltage +/- 10 V DC 24 V max 11 bits + sign<br />AI2 software-configurable current 0...20 mA 242 Ohm 11 bits<br />AI2 software-configurable voltage 0...10 V DC 24 V max 30000 Ohm 11 bits
input sampling time
2 ms +/- 0.5 ms AI1-/Al1+) - analog<br />2 ms +/- 0.5 ms Al2) - analog<br />2 ms +/- 0.5 ms LI1...LI5) - discrete<br />2 ms +/- 0.5 ms LI6)if configured as logic input - discrete<br />2 ms +/- 0.5 ms AO1) - analog
Response time
<= 100 ms in STO (Safe Torque Off)<br />R1A, R1B, R1C <= 7 ms +/- 0.5 ms<br />R2A, R2B <= 7 ms +/- 0.5 ms
absolute accuracy precision
+/- 0.6 % AI1-/Al1+) for a temperature variation 60 °C<br />+/- 0.6 % AI2) for a temperature variation 60 °C<br />+/- 1 % AO1) for a temperature variation 60 °C
Linearity error
+/- 0.2 % AO1)<br />+/- 0.15 % of maximum value AI1-/Al1+)<br />+/- 0.15 % of maximum value AI2)
Analogue output number
1
Analogue output type
AO1 software-configurable logic output 10 V 20 mA<br />AO1 software-configurable current 0...20 mA 500 Ohm 10 bits<br />AO1 software-configurable voltage 0...10 V DC 470 Ohm 10 bits
Discrete output number
2
Discrete output type
Configurable relay logic R1A, R1B, R1C) NO/NC - 100000 cycles<br />Configurable relay logic R2A, R2B) NO - 100000 cycles
Minimum switching current
3 mA 24 V DC configurable relay logic
Maximum switching current
R1, R2 2 A 250 V AC inductive, cos phi = 0.4<br />R1, R2 2 A 30 V DC inductive, cos phi = 0.4<br />R1, R2 5 A 250 V AC resistive, cos phi = 1<br />R1, R2 5 A 30 V DC resistive, cos phi = 1
Discrete input number
7
Discrete input type
LI1...LI5 programmable 24 V DC level 1 PLC 3500 Ohm<br />LI6 switch-configurable 24 V DC level 1 PLC 3500 Ohm<br />LI6 switch-configurable PTC probe 0…6 1500 Ohm<br />PWR safety input 24 V DC 1500 Ohm ISO 13849-1 level d
Discrete input logic
Negative logic (sink) LI1...LI5), > 16 V, < 10 V<br />Positive logic (source) LI1...LI5), < 5 V, > 11 V<br />Negative logic (sink) LI6)if configured as logic input, > 16 V, < 10 V<br />Positive logic (source) LI6)if configured as logic input, < 5 V, > 11 V<br />Positive logic (source) PWR), < 2 V, > 17 V
Acceleration and deceleration ramps
Linear adjustable separately from 0.01 to 9000 s<br />S, U or customized<br />Automatic adaptation of ramp if braking capacity exceeded, by using resistor
Braking to standstill
By DC injection
Protection type
Against exceeding limit speed drive<br />Against input phase loss drive<br />Break on the control circuit drive<br />Input phase breaks drive<br />Line supply overvoltage drive<br />Line supply undervoltage drive<br />Overcurrent between output phases and earth drive<br />Overheating protection drive<br />Overvoltages on the DC bus drive<br />Short-circuit between motor phases drive<br />Thermal protection drive<br />Motor phase break motor<br />Power removal motor<br />Thermal protection motor<br />Power removal drive
Insulation resistance
> 1 mOhm 500 V DC for 1 minute to earth
Frequency resolution
Analog input 0.024/50 Hz<br />Display unit 0.1 Hz
communication port protocol
CANopen<br />Modbus
Connector type
1 RJ45 on front face)Modbus<br />1 RJ45 on terminal)Modbus<br />1 RJ45CANopen
Physical interface
2-wire RS 485 Modbus
Transmission frame
RTU Modbus
Transmission rate
4800 bps, 9600 bps, 19200 bps, 38.4 Kbps Modbus on terminal<br />9600 bps, 19200 bps Modbus on front face<br />20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen
Data format
8 bits, 1 stop, even parity Modbus on front face<br />8 bits, odd even or no configurable parity Modbus on terminal
Number of addresses
1…127 CANopen<br />1…247 Modbus
Method of access
Slave CANopen
marking
CE
Operating position
Vertical +/- 10 degree
Height
11.6 in (295 mm)
Depth
8.4 in (213 mm)
Width
8.3 in (210 mm)
Net Weight
16.5 lb(US) (7.5 kg)
Option card
Communication card CC-Link<br />Controller inside programmable card<br />Communication card DeviceNet<br />Communication card EtherNet/IP<br />Communication card Fipio<br />I/O extension card<br />Communication card Interbus-S<br />Communication card Modbus Plus<br />Communication card Modbus TCP<br />Communication card Modbus/Uni-Telway<br />Communication card Profibus DP<br />Communication card Profibus DP V1<br />Communication card LonWorks<br />Communication card METASYS N2<br />Communication card APOGEE FLN<br />Communication card BACnet
Noise level
60.2 dB 86/188/EEC
Dielectric strength
5092 V DC between control and power terminals<br />3800 V DC between earth and power terminals
Electromagnetic compatibility
1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5<br />Conducted radio-frequency immunity test level 3 IEC 61000-4-6<br />Electrical fast transient/burst immunity test level 4 IEC 61000-4-4<br />Electrostatic discharge immunity test level 3 IEC 61000-4-2<br />Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3<br />Voltage dips and interruptions immunity test IEC 61000-4-11
Standards
EN 55011 group 1 class B<br />IEC 60721-3-3 class 3S2<br />EN/IEC 61800-3<br />UL Type 1<br />EN/IEC 61800-3 environment 2<br />IEC 60721-3-3 class 3C1<br />EN/IEC 61800-5-1<br />EN/IEC 61800-3 environment 1
Product Certifications
GOST<br />NOM 117<br />CSA<br />UL<br />C-tick
Pollution degree
3 UL 840<br />3 EN/IEC 61800-5-1
IP degree of protection
IP20 on upper part without blanking plate on cover EN/IEC 60529<br />IP20 on upper part without blanking plate on cover EN/IEC 61800-5-1<br />IP21 EN/IEC 60529<br />IP21 EN/IEC 61800-5-1<br />IP41 on upper part EN/IEC 60529<br />IP41 on upper part EN/IEC 61800-5-1<br />IP54 on lower part EN/IEC 60529<br />IP54 on lower part EN/IEC 61800-5-1
Vibration resistance
1 gn 13…200 Hz)EN/IEC 60068-2-6<br />1.5 mm peak to peak 3…13 Hz)EN/IEC 60068-2-6
Shock resistance
15 gn 11 ms EN/IEC 60068-2-27
Relative humidity
5…95 % without condensation IEC 60068-2-3<br />5…95 % without dripping water IEC 60068-2-3
Ambient air temperature for operation
14…122 °F (-10…50 °C) without derating)<br />122…140 °F (50…60 °C) with derating factor)
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Operating altitude
<= 3280.84 ft (1000 m) without derating<br />3280.84...7414.7 ft (1000...2260 m) with current derating 1 % per 100 m
