Product Model

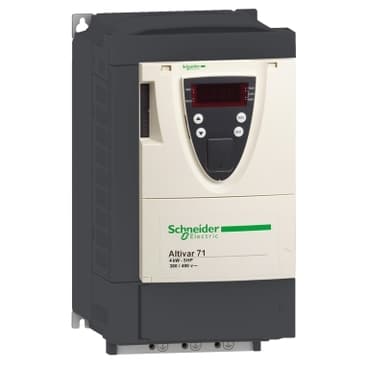

ATV71HU40N4T1
Selling Points
- 1High Power Rating: 4 kW (5 hp) for 3-phase motors operating at 380-480 V.
- 2Advanced Control: Sensorless Flux Vector Control (SFVC) ensures smooth and precise control of motor torque and speed.
- 3Wide Frequency Range: Supports output frequencies from 0.1 Hz to 599 Hz for precise speed control.
- 4Efficient Heat Dissipation: Integrated heat sink maintains drive efficiency and extends service life.
- 5User-Friendly Interface: Intuitive keypad and graphical display for easy configuration and monitoring of drive parameters.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Asynchronous motor control profile | Constant torque standard | Device short name | ATV71 |
Range of Product | Altivar 71 | Line Rated Current | 10.5 A |
Cable entry | Type 1 conduit entry outdoor | communication port protocol | Modbus<br />CANopen |
Input voltage | 400/480 V AC | Keypad Type | LCD keypad |
Maximum Horse Power Rating | 5 hp | Motor power kW | 4 kW |
Phase | 3 phase output<br />1 phase input | Output voltage | <= rated supply voltage |
EMC filter | Class A EMC filter integrated | IP Degree of Protection | IP20 |
NEMA Degree of Protection | No enclosure rating (open device) | Protective treatment | None |
Specifications may be subject to change without notice
