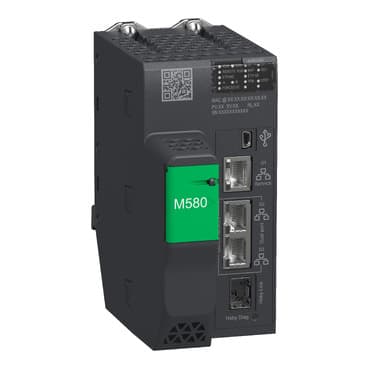

schneider BMEH582040

Selling Points

  • 1High Performance: Supports up to 8192 discrete and 2048 analogue I/O channels.
  • 2Redundancy: Features Hot Standby (HSBY) redundancy for enhanced reliability.
  • 3Advanced Memory: Equipped with 8MB integrated RAM for programs, 768KB for data, and 4GB expandable flash.
  • 4Ethernet Connectivity: Includes 2 Ethernet TCP/IP ports for device network and service port.
  • 5Certified and Compliant: Meets EN 61131-2, EN 61000-6-4, and EN 61010-2-201 standards, certified by CE, UL, RCM, CSA, and EAC.
Product Details
BMEH582040
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M580
Product or Component Type
Redundant processor module
Number of racks
1
Application specific I/O
Counter<br />Accurate time stamping<br />Serial link<br />HART<br />Motion control<br />SSI encoder
Checks
Process control
Control channels
Programmable loops
Integrated connection type
1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B<br />1 Ethernet HSBY port
Number of remote I/O station
8 - 2 X80 remote drop
Number of distributed equipment
64
Communication module processor capacity
2 Ethernet communication module<br />16 AS-Interface module
Communication Service
DIO scanner<br />RIO scanner
Memory description
Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 8 MB program<br />Integrated RAM, 768 kB data
Application structure
1 periodic fast task<br />1 cyclic/periodic master task
Cybersecurity
Achilles certified<br />DoS prevention<br />IPSec<br />SNMP logging<br />Syslog protocol support<br />Transport layer security<br />Audit trail<br />Embedded firewall<br />Firmware signature<br />Password protection<br />Port hardening<br />Secure communication (HTTPS)<br />Security log
Number of instructions per ms
30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />40 Kinst/ms 100 % Boolean
Current consumption
270 mA 24 V DC
MTBF reliability
650000 H
marking
CE
Vibration resistance
3 gn
Shock resistance
30 gn
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Operating altitude
0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor
Relative humidity
5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection
IP20
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility
Supply
Internal power supply via rack
Status LED
1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status)<br />1 LED (Green) peer processor running (REMOTE RUN)<br />1 LED (Green) processor ID set to A (A)<br />1 LED (Green) processor ID set to B (B)<br />1 LED (Green) processor acting as Primary (PRIM)<br />1 LED (Green) processor acting as Standby (STBY)<br />1 LED (Green) I/O values overrided by user (FORCED IO)<br />1 LED (Green) Hot standby link status (Hsby Diag)
Net Weight
1.872 lb(US) (0.849 kg)

Specifications may be subject to change without notice
