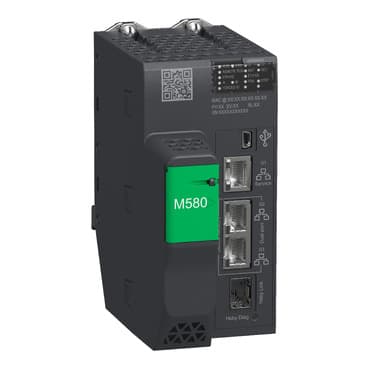

schneider BMEH584040

Selling Points

  • 1Redundant Processor Module: Ensures high reliability with dual processing capabilities.
  • 216MB Integrated RAM: Supports extensive program and data storage needs.
  • 34GB Expandable Flash: Offers ample data storage with easy expansion options.
  • 4Robust Ethernet Connectivity: Supports up to 61 Ethernet devices and 16 remote I/O racks.
  • 5IP20 Rated and Durable: Designed for harsh environments with shock and vibration resistance.
Product Details
BMEH584040
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M580
Product or Component Type
Redundant processor module
Number of racks
1
Application specific I/O
HART<br />SSI encoder<br />Serial link<br />Motion control<br />Accurate time stamping<br />Counter
Checks
Process control
Control channels
Programmable loops
Integrated connection type
1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B<br />1 Ethernet HSBY port
Number of remote I/O station
16 - 2 X80 and Quantum drops
Number of distributed equipment
64
Communication module processor capacity
8 AS-Interface module<br />16 Ethernet communication module
Communication Service
RIO scanner<br />DIO scanner
Memory description
Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 16 MB program<br />Integrated RAM, 2048 kB data
Application structure
1 cyclic/periodic master task<br />1 periodic fast task
Cybersecurity
Achilles certified<br />DoS prevention<br />IPSec<br />SNMP logging<br />Syslog protocol support<br />Transport layer security<br />Audit trail<br />Embedded firewall<br />Firmware signature<br />Password protection<br />Port hardening<br />Secure communication (HTTPS)<br />Security log
Number of instructions per ms
30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />40 Kinst/ms 100 % Boolean
Current consumption
360 mA 24 V DC
MTBF reliability
650000 H
marking
CE
Vibration resistance
3 gn
Shock resistance
30 gn
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Operating altitude
0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor
Relative humidity
5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection
IP20
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility
Supply
Internal power supply via rack
Status LED
1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status)<br />1 LED (Green) peer processor running (REMOTE RUN)<br />1 LED (Green) processor ID set to A (A)<br />1 LED (Green) processor ID set to B (B)<br />1 LED (Green) processor acting as Primary (PRIM)<br />1 LED (Green) processor acting as Standby (STBY)<br />1 LED (Green) I/O values overrided by user (FORCED IO)<br />1 LED (Green) Hot standby link status (Hsby Diag)
Net Weight
1.872 lb(US) (0.849 kg)

Specifications may be subject to change without notice
