Product Model

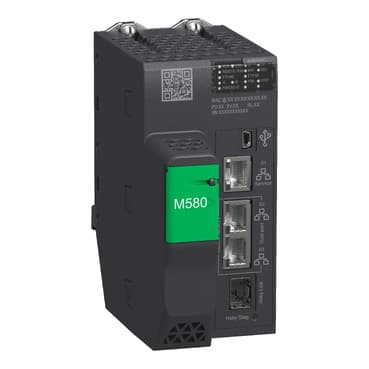

BMEH584040C
Selling Points
- 1Ensures continuous operation even in case of a processor failure.
- 2Supports complex automation tasks with ample memory for programs and data.
- 3Protects against cyber threats with robust security features.
- 4Integrates seamlessly with the Modicon M580 range for enhanced process control.
- 5Designed to operate in demanding industrial settings with a protective coating on the circuit board.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M580 | Product or Component Type | Redundant processor module |
Impregnation material | Conformal coated | Number of racks | 1 |
Application specific I/O | Accurate time stamping<br />HART<br />Counter<br />SSI encoder<br />Serial link<br />Motion control | Checks | Process control |
Control channels | Programmable loops | Integrated connection type | 1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B<br />1 Ethernet HSBY port |
Number of remote I/O station | 16 - 2 X80 and Quantum drops | Number of distributed equipment | 64 |
Communication module processor capacity | 8 AS-Interface module<br />16 Ethernet communication module | Communication Service | DIO scanner<br />RIO scanner |
Memory description | Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 16 MB program<br />Integrated RAM, 2048 kB data | Application structure | 1 periodic fast task<br />1 cyclic/periodic master task |
Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />40 Kinst/ms 100 % Boolean | Current consumption | 360 mA 24 V DC |
MTBF reliability | 650000 H | marking | CE |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive |
Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 | Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />IEC 60079-0 |
Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 | Protective treatment | Conformal coating |
Supply | Internal power supply via rack | Status LED | 1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status)<br />1 LED (Green) peer processor running (REMOTE RUN)<br />1 LED (Green) processor ID set to A (A)<br />1 LED (Green) processor ID set to B (B)<br />1 LED (Green) processor acting as Primary (PRIM)<br />1 LED (Green) processor acting as Standby (STBY)<br />1 LED (Green) I/O values overrided by user (FORCED IO)<br />1 LED (Green) Hot standby link status (Hsby Diag) |
Net Weight | 1.872 lb(US) (0.849 kg) |
Specifications may be subject to change without notice
