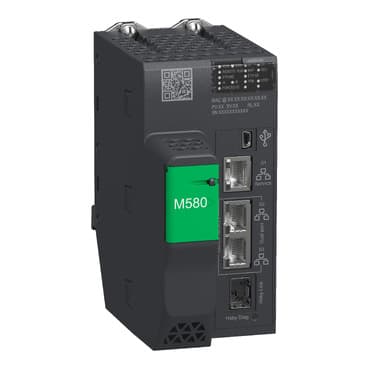

schneider BMEH586040

Selling Points

  • 1Redundant HSBY Processor Module: Ensures high reliability and uptime in critical applications.
  • 2Modicon M580 Compatibility: Designed for use with Modicon M580 PAC controllers, enhancing control and automation capabilities.
  • 34 GB Expandable Flash: Provides ample storage for data and programs, expandable to meet growing needs.
  • 464 MB Integrated RAM: Offers robust memory for efficient processing and data handling.
  • 5Rack Mounting: Conveniently mounts in racks, simplifying installation and maintenance in industrial settings.
Product Details
BMEH586040
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M580
Product or Component Type
Redundant processor module
Number of racks
1
Application specific I/O
Counter<br />SSI encoder<br />Serial link<br />HART<br />Accurate time stamping<br />Motion control
Checks
Process control
Control channels
Programmable loops
Integrated connection type
1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B<br />1 Ethernet HSBY port
Number of remote I/O station
31 - 2 X80 and Quantum drops
Number of distributed equipment
64
Communication module processor capacity
6 Ethernet communication module<br />16 AS-Interface module
Communication Service
DIO scanner<br />RIO scanner
Memory description
Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 64 MB program and data<br />Integrated RAM, 4096 kB HSBY data
Application structure
1 cyclic/periodic master task<br />1 periodic fast task
Cybersecurity
Achilles certified<br />DoS prevention<br />IPSec<br />SNMP logging<br />Syslog protocol support<br />Transport layer security<br />Audit trail<br />Embedded firewall<br />Firmware signature<br />Password protection<br />Port hardening<br />Secure communication (HTTPS)<br />Security log
Number of instructions per ms
40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />50 Kinst/ms 100 % Boolean
Current consumption
365 mA 24 V DC
MTBF reliability
650000 H
marking
CE
Vibration resistance
3 gn
Shock resistance
30 gn
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Operating altitude
0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor
Relative humidity
5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection
IP20
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy
Standards
IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G
Environmental characteristic
Hazardous location class I division 2
Supply
Internal power supply via rack
Status LED
1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status)<br />1 LED (Green) peer processor running (REMOTE RUN)<br />1 LED (Green) processor ID set to A (A)<br />1 LED (Green) processor ID set to B (B)<br />1 LED (Green) processor acting as Primary (PRIM)<br />1 LED (Green) processor acting as Standby (STBY)<br />1 LED (Green) I/O values overrided by user (FORCED IO)<br />1 LED (Green) Hot standby link status (Hsby Diag)
Net Weight
1.872 lb(US) (0.849 kg)

Specifications may be subject to change without notice
