schneiderPLC/PAC and Controllers
Product Model

BMENOC0311C

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29493

In Stock
Last updated: 2025/4/18
View Specifications

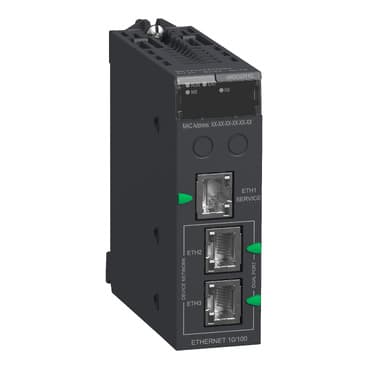

schneider BMENOC0311C

Selling Points

  • 1Native Ethernet Capabilities: Supports 10/100 Mbps communication over RJ45 terminals for efficient network connectivity.
  • 2High Performance: Designed for smooth modernization solutions with advanced web server for comprehensive configuration and monitoring.
  • 3Enhanced Cyber-Security: Ensures secure data transmission with robust protocols and services like Bandwidth management and RSTP support.
  • 4Compact Design: Weighs just 0.44 lb (0.2 kg) for easy integration into existing systems.
  • 5Versatile Applications: Suitable for diverse industrial settings including water treatment plants, food and beverage, life sciences, and more.
Product Details
BMENOC0311C
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M580
Product or Component Type
Communication module
Product compatibility
BMEXBP... - Ethernet + X-bus rack
Supply
Internal power supply via rack
Integrated connection type
3 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair
Transmission support medium
Ethernet backplane
Communication service
Bandwidth management<br />FDR server<br />SNMP network administrator<br />Modbus TCP I/O Scanner and Messaging<br />Ethernet/IP I/O Scanner and Messaging<br />RSTP support<br />Port mirroring<br />Embedded multiport switch
Web services
FactoryCast configurable
Web server
Advanced
Current consumption
900 mA 3.3 V DC for product version >= 13)<br />1800 mA 3.3 V DC for product version < 13)
Local signalling
for processor running (RUN) 1 LED (green)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for ETH MS (Ethernet port configuration status) 1 LED (green/red)<br /> for Eth NS (Ethernet network status) 1 LED (green/red)
Net Weight
0.4 lb(US) (0.2 kg)
IP Degree of Protection
IP20
Protective treatment
Conformal coating
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
marking
CE
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22
Standards
EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive
Environmental characteristic
Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2

Specifications may be subject to change without notice
