schneiderPLC/PAC and Controllers
Product Model

BMENOC0321

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29494

In Stock
Last updated: 2025/4/18
View Specifications

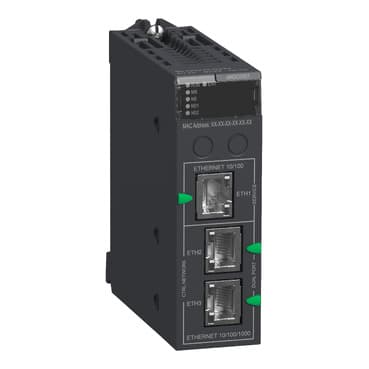

schneider BMENOC0321

Selling Points

  • 1Provides direct Ethernet connection between control room subnetwork and automation devices subnetwork.
  • 2Defines two different subnets for control and device networks, ensuring seamless communication.
  • 3Manages Ethernet transparency between control and device networks, enabling efficient data transfer.
  • 4Supports 10/100/1000 Mbps Ethernet speeds for fast data exchange.
  • 5Ensures secure communication with enhanced cyber-security measures for critical operations.
Product Details
BMENOC0321
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M580
Product or Component Type
Communication module
Product compatibility
BMEXBP... - Ethernet + X-bus rack
Supply
Internal power supply via rack
Integrated connection type
3 Ethernet RJ45 10/100/1000 Mbps double shielded twisted pair
Memory usage
Application saving<br />Activating the advanced web server
Transmission support medium
Ethernet backplane
Communication service
Bandwidth management<br />FDR server<br />Modbus TCP I/O Scanner and Messaging<br />Ethernet/IP I/O Scanner and Messaging<br />Embedded 4-port switch<br />RSTP support<br />IP forwarding
Web services
FactoryCast configurable
Web server
Advanced
Current consumption
1800 mA 3.3 V DC
Local signalling
for processor running (RUN) 1 LED (green)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for ETH MS (Ethernet port configuration status) 1 LED (green/red)<br /> for Eth NS (Ethernet network status) 1 LED (green/red)<br /> for Eth NS1 (Ethernet network status) 1 LED (green/red)<br /> for Eth NS2 (Ethernet network status) 1 LED (green/red)
Net Weight
0.4 lb(US) (0.2 kg)
IP Degree of Protection
IP20
Protective treatment
TC
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
marking
CE
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility

Specifications may be subject to change without notice
