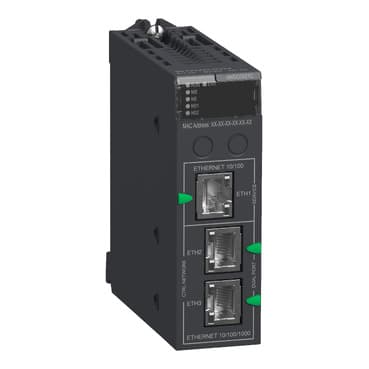

schneider BMENOC0321C

Selling Points

  • 1High-performance communication module for Modicon M580 series, supporting 3-subnet Ethernet.
  • 2IP forwarding and bandwidth management for efficient network operations.
  • 3Conformal coating for enhanced durability in harsh industrial environments.
  • 4Advanced web server with application saving and FactoryCast configurable web services.
  • 5Compliant with multiple certifications including CE, UL, CSA, and ATEX zone 2/22.
Product Details
BMENOC0321C
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M580
Product or Component Type
Communication module
Product compatibility
BMEXBP... - Ethernet + X-bus rack
Supply
Internal power supply via rack
Integrated connection type
3 Ethernet RJ45 10/100/1000 Mbps double shielded twisted pair
Memory usage
Application saving<br />Activating the advanced web server
Transmission support medium
Ethernet backplane
Communication service
Bandwidth management<br />FDR server<br />Modbus TCP I/O Scanner and Messaging<br />Ethernet/IP I/O Scanner and Messaging<br />RSTP support<br />IP forwarding<br />Email
Web services
FactoryCast configurable
Web server
Advanced
Current consumption
1800 mA 3.3 V DC
Local signalling
for processor running (RUN) 1 LED (green)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for ETH MS (Ethernet port configuration status) 1 LED (green/red)<br /> for Eth NS (Ethernet network status) 1 LED (green/red)<br /> for Eth NS1 (Ethernet network status) 1 LED (green/red)<br /> for Eth NS2 (Ethernet network status) 1 LED (green/red)
Net Weight
0.4 lb(US) (0.2 kg)
IP Degree of Protection
IP20
Protective treatment
Conformal coating
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
marking
CE
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22
Standards
EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive
Environmental characteristic
Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2

Specifications may be subject to change without notice
