Product Model

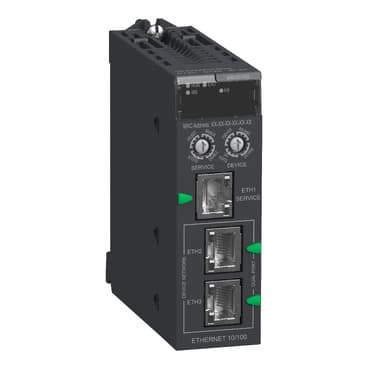

BMENOS0300
Selling Points
- 1Robust and reliable, built with the latest innovative technology.
- 2Compatible with Modicon M580 and M340 Programmable Automation Controllers (PAC).
- 3Includes 3 Ethernet/IP ports for device network and service port.
- 4Power consumption of 3.3W at 25°C and 4.5W at 60°C.
- 5Certified by CE, ABS, BV, GL, EAC, LR, DNV, RINA for global use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Switch module |
Product Compatibility | BMEXBP... backplane | [Us] rated supply voltage | 24 V back plane |
Power consumption in W | 3.3 W 135 mA 25 °C<br />4.5 W 185 mA 60 °C | Number of port | 3 |
Integrated connection type | Ethernet/IP device network<br />Ethernet/IP service port | communication port protocol | EtherNet/IP |
Local signalling | for module active (RUN) 1 LED (green)<br /> for module error (ERR) 1 LED (red)<br /> for module status (Mod Status) 1 LED (green/red)<br /> for network communication status (Net Status) 1 LED (green/red) | Module format | Standard |
marking | CE | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Operating altitude | <= 6561.68 ft (2000 m) |
Maximum altitude transport | 9842.5 ft (3000 m) | Overvoltage category | II |
Relative Humidity | 95 % without condensation |
Specifications may be subject to change without notice
