Product Model

BMENOS0300C

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29500

In Stock
Last updated: 2025/4/18
View Specifications

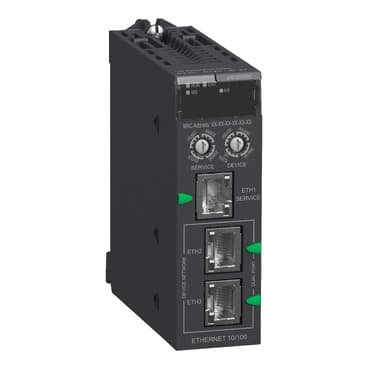

schneider BMENOS0300C

Selling Points

  • 1Robust Design: Built to withstand harsh environments with conformal coating.
  • 2EtherNet/IP Connectivity: Equipped with 1 EtherNet/IP for service port and 2 EtherNet/IP for device network.
  • 3LED Indicators: Includes 4 LEDs for module active, error, status, and network communication status.
  • 4Compliance Certifications: Meets CE, UL, CSA, RCM, EAC, and ATEX zone 2/22 certifications.
  • 5Operational Flexibility: Operates within 0°C to 60°C ambient air temperature and up to 2000 meters altitude.
Product Details
BMENOS0300C
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon X80
Product or Component Type
Switch module
Product Compatibility
BMEXBP... backplane
[Us] rated supply voltage
24 V back plane
Power consumption in W
3.3 W 135 mA 25 °C<br />4.5 W 185 mA 60 °C
Number of port
3
Integrated connection type
Ethernet/IP device network<br />Ethernet/IP service port
communication port protocol
EtherNet/IP
Local signalling
for module active (RUN) 1 LED (green)<br /> for module error (ERR) 1 LED (red)<br /> for module status (Mod Status) 1 LED (green/red)<br /> for network communication status (Net Status) 1 LED (green/red)
Module format
Standard
marking
CE
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22
Standards
EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0
Environmental characteristic
Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2
IP Degree of Protection
IP20
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Operating altitude
<= 6561.68 ft (2000 m)
Maximum altitude transport
9842.5 ft (3000 m)
Overvoltage category
II
Relative Humidity
95 % without condensation
Protective treatment
Conformal coating

Specifications may be subject to change without notice
