Product Model

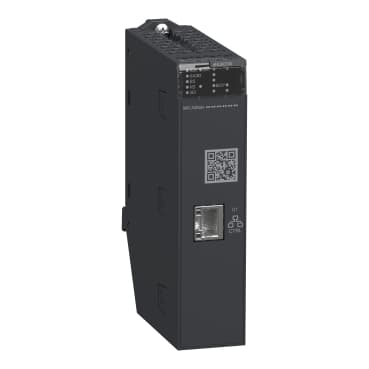

BMENUA0100
Selling Points
- 1High-Speed Communication: 1 Gbps Ethernet for fast data transfer.
- 2Robust Security: Embedded OPC UA server with role-based access control and HTTPS.
- 3Versatile Compatibility: Compatible with Ethernet and X-bus rack systems.
- 4Reliable Operation: Operates in temperatures from 32 to 140°F (0 to 60°C).
- 5Sustainable Design: Green Premium product with low environmental impact and circular design principles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M580 | Product or Component Type | Communication module |
Device Application | OPC UA server & IT control network | Product compatibility | Modicon M580 standalone CPU (BMEP58…..)<br />Modicon M580 redundant CPU (BMEH58…..)<br />Modicon M580 safety CPU (non interfering type 1) (BMEP582…..)<br />Modicon M580 safety redundant CPU (non interfering type 1) (BMEH582…..)<br />Modicon X80 rack with Ethernet backplane (BMEXBP…..) |
Mounting Location | Main rack | Backplane slot location | Ethernet + X-bus Slot |
Slot occupied by module | 1 | Maximum number of modules per rack | 2 |
Supply | Internal power supply via rack | Integrated connection type | 1 Ethernet port RJ45 10/100/1000 Mbit/s double shielded twisted pair |
Exchange mode | Half duplex and full duplex | Transmission support medium | Ethernet backplane |
OPC UA | OPC UA server<br />10 clients connection max<br />50000 monitored item max in standard sampling mode<br />2000 monitored item max in fast sampling mode<br />40 maximum subscriptions per session<br />250 ms, minimum publishing interval in standard sampling mode<br />20 ms, minimum sampling interval in fast sampling mode<br />20 ms, minimum publishing interval in fast sampling mode<br />125 ms, sampling interval in standard sampling mode<br />100000, maximum number of nodes of data dictionary <br />Warm redundancy mode | Source timestamping | Only digital IOs or variables<br />250 ms, minimum polling of buffer<br />5000 ms, maximum polling of buffer |
Network | IPV6<br />IP forwarding (Front port and backplane)<br />Service forwarding<br />Network segmentation | Communication service | Modbus TCP server for module diagnostics<br />Network management SNMP agent V1 and V3<br />Time synchronization NTP V4 - Client and Server |
Cybersecurity | Secure communication (HTTPS)<br />Built-in firewall<br />Certificate based authentication<br />Certificate management (self-signed and PKI)<br />System hardening<br />Role-based access control<br />Syslog protocol support<br />IPSec (initiator and responder role)<br />Network physical isolation<br />Achilles level 2 tested | Function Available | CCOTF (configuration change on the fly)<br />Hot swappable module<br />Export & import webpage configuration<br />Advanced diagnostic information (DDT, web pages, OPC UA objects)<br />SCADA connection via communication protocol forwarding |
Web server | For commissioning, operational and maintenance | Current consumption | <= 140 mA 24 V DC |
Local signalling | for processor running (RUN) 1 LED (green)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for ETH MS (Ethernet port configuration status) 1 LED (green/red)<br /> for Eth NS (Ethernet network status) 1 LED (green/red)<br /> for status (STS) 1 LED (green/red)<br /> for communication data bus 1 LED (yellow) | Width | 1.3 in (32 mm) |
Height | 5.2 in (131 mm) | Length | 3.39 in (86.05 mm) |
Net Weight | 0.9 lb(US) (0.4 kg) | IP Degree of Protection | IP20 |
Protective treatment | Standard version | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000 m...5000 m with derating factor | Vibration resistance | 3 gn |
Shock resistance | 30 gn | marking | CE |
Product certifications | CE<br />CULus<br />RCM<br />UKCA<br />EAC<br />Merchant Navy | Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 & type 2<br />EN/IEC 61850-3, location G |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Environmental characteristic | Hazardous location class I division 2 |
Specifications may be subject to change without notice
