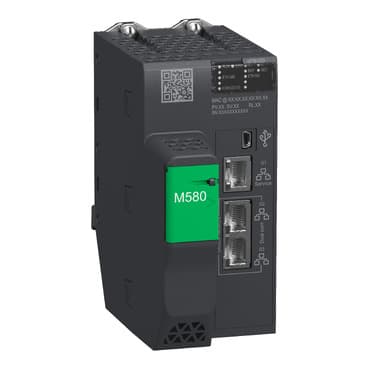

Product Model
BMEP581020
Selling Points
- 1High Performance: The BMEP581020 supports up to 7.5 Kinst/ms with 65% Boolean and 35% fixed arithmetic instructions.
- 2Advanced Memory: Equipped with 4 GB expandable flash, 4 MB integrated RAM for programs, and 384 kB integrated RAM for data.
- 3Distributed Control: Designed for 1-Level Distributed systems with 4 local I/O racks and 1024 discrete I/O.
- 4Robust Connectivity: Includes 1 Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, and USB type mini B.
- 5Enhanced Security: Features cybersecurity certifications including DoS prevention, IPSec, SNMP logging, and Syslog protocol support.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M580 | Product or Component Type | Processor module |
Number of racks | 4 | Local I/O processor capacity (discrete) | 1024 I/O |
Local I/O processor capacity (analog) | 256 I/O | Number of application specific channel (local rack) | 36 |
Application specific I/O | Accurate time stamping<br />Motion control<br />Counter<br />HART<br />SSI encoder<br />Serial link | Checks | Process control |
Control channels | Programmable loops | Integrated connection type | 1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B |
Number of distributed equipment | 64 | Communication module processor capacity | 2 Ethernet communication module<br />2 AS-Interface module |
Communication Service | DIO scanner | Memory description | Integrated RAM, 4 MB program<br />Integrated RAM, 384 kB data<br />Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory |
Application structure | 1 periodic fast task<br />2 auxiliary tasks<br />1 cyclic/periodic master task<br />64 event tasks | Cybersecurity | Achilles certified<br />DoS prevention<br />IPSec<br />SNMP logging<br />Syslog protocol support<br />Transport layer security<br />Audit trail<br />Embedded firewall<br />Firmware signature<br />Password protection<br />Port hardening<br />Secure communication (HTTPS)<br />Security log |
Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />40 Kinst/ms 100 % Boolean | Current consumption | 270 mA 24 V DC |
MTBF reliability | 775000 H | marking | CE |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy | Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G |
Environmental characteristic | Hazardous location class I division 2 | Supply | Internal power supply via rack |
Status LED | 1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status) | Net Weight | 1.872 lb(US) (0.849 kg) |
Specifications may be subject to change without notice
