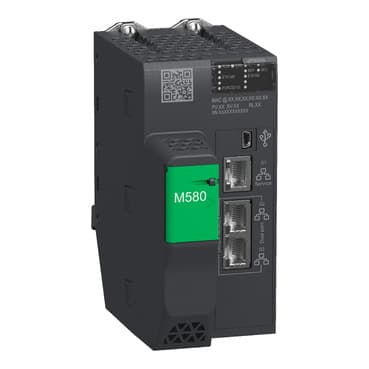

Schneider Electric BMEP582040 PLC CPU-Module for Industrial Automation

Selling Points

1High-Performance Processing: Optimizes complex automation systems with fast processing times and robust performance.
2Ethernet Connectivity: Supports seamless communication across multiple devices and systems via native Ethernet connectivity.
3Scalable Design: Supports up to 4 racks, allowing for the expansion of I/O modules and other critical components.
4Energy Efficiency: Operates on a 24 VDC power supply with low current consumption (295 mA), reducing energy costs.
5Industrial Durability: Designed to operate in challenging environments with a broad temperature range (0°C to +60°C) and IP20 rating for dust protection.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Modicon M580	Product or Component Type	Processor module
Number of racks	4	Local I/O processor capacity (discrete)	2048 I/O
Local I/O processor capacity (analog)	512 I/O	Number of application specific channel (local rack)	72
Application specific I/O	Serial link<br />Counter<br />Accurate time stamping<br />HART<br />Motion control<br />SSI encoder	Checks	Process control
Control channels	Programmable loops	Integrated connection type	1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B
Number of remote I/O station	8 - 2 remote drop	Number of distributed equipment	64
Communication module processor capacity	2 Ethernet communication module<br />16 AS-Interface module	Communication Service	DIO scanner<br />RIO scanner
Memory description	Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 8 MB program process<br />Integrated RAM, 768 kB data process<br />Integrated RAM, 2 MB program safety<br />Integrated RAM, 512 KB data safety	Application structure	64 event tasks<br />2 auxiliary tasks<br />1 cyclic/periodic master task<br />1 periodic fast task
Cybersecurity	Achilles certified<br />DoS prevention<br />IPSec<br />SNMP logging<br />Syslog protocol support<br />Transport layer security<br />Audit trail<br />Embedded firewall<br />Firmware signature<br />Password protection<br />Port hardening<br />Secure communication (HTTPS)<br />Security log	Number of instructions per ms	30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />40 Kinst/ms 100 % Boolean
Current consumption	270 mA 24 V DC	MTBF reliability	775000 H
marking	CE	Vibration resistance	3 gn
Shock resistance	15 gn	Ambient Air Temperature for Operation	32…140 °F (0…60 °C)
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)	Operating altitude	0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor
Relative humidity	5…95 % 131 °F (55 °C) without condensation	IP Degree of Protection	IP20
Directives	2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility	Product certifications	CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy
Standards	IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G	Environmental characteristic	Safety<br />Corrosion resistance<br />Salt mist<br />Dust resistant<br />Hazardous location class I division 2
Supply	Internal power supply via rack	Status LED	1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status)<br />1 LED (Green) processor in safety mode (SRUN)<br />1 LED (Green) processor in maintenance mode (SMOD)<br />1 LED (Red) I/O values overrided by user (FORCED IO)
Net Weight	1.872 lb(US) (0.849 kg)

Specifications may be subject to change without notice
