Product Model

BMEP582040H

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29508

In Stock
Last updated: 2025/4/18
View Specifications

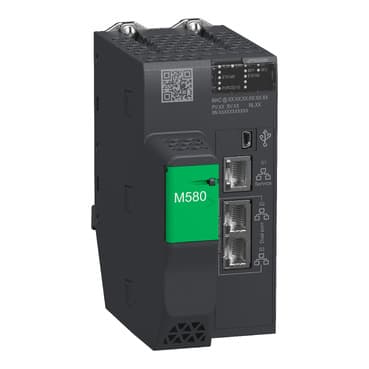

schneider BMEP582040H

Selling Points

  • 1IP20 enclosure for harsh environments.
  • 24 GB expandable flash and multiple RAM options.
  • 32048 discrete/512 analog input/output.
  • 4Supports up to 4 expansion racks.
  • 5270 mA at 24 VDC.
Product Details
BMEP582040H
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M580
Product or Component Type
Processor module
Product Specific Application
For severe environments
Number of racks
4
Local I/O processor capacity (discrete)
2048 I/O
Local I/O processor capacity (analog)
512 I/O
Number of application specific channel (local rack)
72
Application specific I/O
Counter<br />HART<br />SSI encoder<br />Accurate time stamping<br />Motion control<br />Serial link
Checks
Process control
Control channels
Programmable loops
Integrated connection type
1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B
Number of remote I/O station
8 - 2 remote drop
Number of distributed equipment
64
Communication module processor capacity
2 Ethernet communication module<br />16 AS-Interface module
Communication Service
RIO scanner<br />DIO scanner
Memory description
Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 8 MB program<br />Integrated RAM, 768 kB data
Application structure
1 periodic fast task<br />64 event tasks<br />1 cyclic/periodic master task<br />2 auxiliary tasks
Number of instructions per ms
30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />40 Kinst/ms 100 % Boolean
Current consumption
270 mA 24 V DC
MTBF reliability
775000 H
marking
CE
Vibration resistance
3 gn
Shock resistance
30 gn
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Operating altitude
0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor
Relative humidity
5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection
IP20
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22
Standards
IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />IEC 60079-0
Environmental characteristic
Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2
Protective treatment
Conformal coating
Supply
Internal power supply via rack
Status LED
1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status)
Net Weight
1.872 lb(US) (0.849 kg)

Specifications may be subject to change without notice
