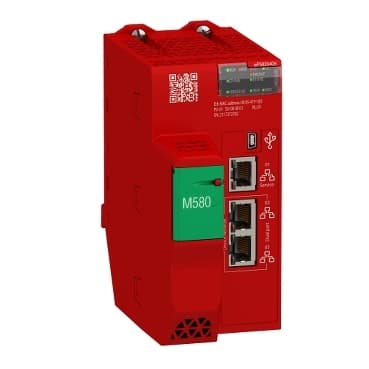

schneider BMEP582040S

Selling Points

  • 1Ethernet/USB Communication: Seamlessly integrate with your system using Ethernet and USB ports.
  • 2High I/O Capacity: Supports up to 10240 I/O channels for extensive automation needs.
  • 3Operating Temperature Range: Operates reliably in temperatures from -25 to 60°C.
  • 4Safety Compliance: Meets stringent safety standards including EN/IEC 61131-2 and UL 61010-2-201.
  • 5Green Premium Certification: Compliant with the latest environmental regulations, ensuring eco-friendly performance.
Product Details
BMEP582040S
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M580
Product or Component Type
Processor module
Impregnation material
Conformal coated
Number of racks
4
Local I/O processor capacity (discrete)
2048 I/O
Local I/O processor capacity (analog)
512 I/O
Number of application specific channel (local rack)
72
Application specific I/O
Counter<br />Motion control<br />SSI encoder<br />Accurate time stamping<br />Serial link<br />HART
Checks
Process control<br />Safety control
Control channels
Programmable loops
Integrated connection type
1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B
Number of remote I/O station
8 - 2 remote drop
Number of distributed equipment
64
Number of CIP safety IO devices
16
Communication module processor capacity
2 Ethernet communication module<br />16 AS-Interface module
Communication Service
DIO scanner<br />RIO scanner
Memory description
Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 8 MB program process<br />Integrated RAM, 768 kB data process<br />Integrated RAM, 2 MB program safety<br />Integrated RAM, 512 KB data safety
Application structure
128 event tasks<br />2 auxiliary tasks<br />1 cyclic/periodic master task<br />1 periodic fast task<br />1 periodic safe task
Cybersecurity
Achilles certified<br />DoS prevention<br />IPSec<br />SNMP logging<br />Syslog protocol support<br />Audit trail<br />Embedded firewall<br />Firmware signature<br />Password protection<br />Port hardening<br />Security log
Number of instructions per ms
30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />40 Kinst/ms 100 % Boolean
Current consumption
295 mA 24 V DC
MTBF reliability
775000 H
marking
CE
Vibration resistance
3 gn
Shock resistance
15 gn
Ambient Air Temperature for Operation
-13…140 °F (-25…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Operating altitude
0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor
Relative humidity
5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection
IP20
Directives
2014/30/EU - electromagnetic compatibility<br />2006/42/EC - machinery<br />2014/34/EU - ATEX directive
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22<br />TÜV
Standards
IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />IEC 60079-0
Environmental characteristic
Hazardous location class I division 2<br />Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3
Protective treatment
Conformal coating
Safety level
SIL 3 IEC 61508<br />SIL 3 IEC 61511<br />SILCL 3 IEC 62061<br />SILCL 3 ISO 13849-1 category 4<br />SIL 4 EN 50126<br />SIL 4 EN 50128<br />SIL 4 EN 50129
Supply
Internal power supply via rack
Status LED
1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status)<br />1 LED (Green) processor in safety mode (SRUN)<br />1 LED (Green) processor in maintenance mode (SMOD)<br />1 LED (Red) I/O values overrided by user (FORCED IO)
Net Weight
1.872 lb(US) (0.849 kg)

Specifications may be subject to change without notice
