Product Model

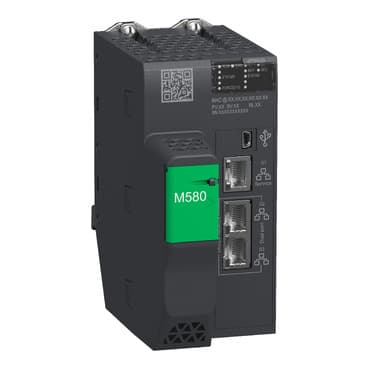

BMEP584020
Selling Points
- 1High Performance: The BMEP584020 features a powerful processor designed for complex networked communication, display, and control applications.
- 2Cybersecure Operation: Ensures reliability and robustness with advanced cybersecure operation risk management.
- 3Flexible Connectivity: Supports up to 125 Ethernet devices and 8 local IO racks, enhancing connectivity and communication.
- 4Rugged Design: IP20 rated and weighs 0.849kg, making it suitable for various industrial environments.
- 5Certified and Reliable: Certified by CE, Merchant Navy, UL, and RCM for reliability in medium to large process applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M580 | Product or Component Type | Processor module |
Number of racks | 8 | Local I/O processor capacity (discrete) | 4096 I/O |
Local I/O processor capacity (analog) | 1024 I/O | Number of application specific channel (local rack) | 144 |
Application specific I/O | HART<br />Accurate time stamping<br />SSI encoder<br />Serial link<br />Motion control<br />Counter | Checks | Process control |
Control channels | Programmable loops | Integrated connection type | 1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B |
Number of distributed equipment | 128 | Communication module processor capacity | 8 AS-Interface module<br />4 Ethernet communication module |
Communication Service | DIO scanner | Memory description | Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 16 MB program<br />Integrated RAM, 2048 kB data |
Application structure | 1 cyclic/periodic master task<br />2 auxiliary tasks<br />1 periodic fast task<br />128 event tasks | Cybersecurity | Achilles certified<br />DoS prevention<br />IPSec<br />SNMP logging<br />Syslog protocol support<br />Transport layer security<br />Audit trail<br />Embedded firewall<br />Firmware signature<br />Password protection<br />Port hardening<br />Secure communication (HTTPS)<br />Security log |
Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />40 Kinst/ms 100 % Boolean | Current consumption | 295 mA 24 V DC |
MTBF reliability | 775000 H | marking | CE |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy | Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G |
Environmental characteristic | Hazardous location class I division 2 | Supply | Internal power supply via rack |
Status LED | 1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status) | Net Weight | 1.872 lb(US) (0.849 kg) |
Specifications may be subject to change without notice
