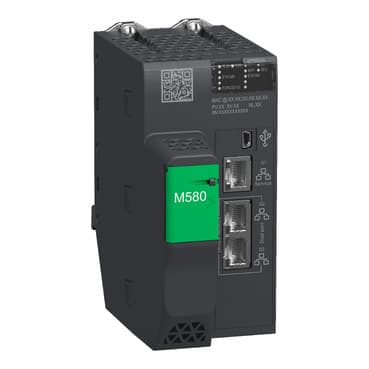

schneider BMEP585040

Selling Points

  • 1High Performance: The BMEP585040 boasts 24MB RAM for efficient program execution and 4GB expandable flash for data storage.
  • 2Cybersecurity: Ensures reliable and robust operation with advanced cybersecure features to manage risk.
  • 3Industrial Compatibility: Compatible with Modicon M580, ideal for process control and high availability solutions.
  • 4Ethernet Connectivity: Supports up to 61 Ethernet devices and 31 remote I/O racks, enhancing network connectivity.
  • 5Environmental Compliance: Meets IP20 rating and complies with environmental directives like the low voltage directive and electromagnetic compatibility.
Product Details
BMEP585040
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M580
Product or Component Type
Processor module
Number of racks
8
Local I/O processor capacity (discrete)
5120 I/O
Local I/O processor capacity (analog)
1280 I/O
Number of application specific channel (local rack)
180
Application specific I/O
Counter<br />SSI encoder<br />Motion control<br />Serial link<br />HART<br />Accurate time stamping
Checks
Process control
Control channels
Programmable loops
Integrated connection type
1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B
Number of remote I/O station
31 - 2 remote drop
Number of distributed equipment
64
Communication module processor capacity
16 AS-Interface module<br />6 Ethernet communication module
Communication Service
DIO scanner<br />RIO scanner
Memory description
Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 24 MB program<br />Integrated RAM, 4096 kB data
Application structure
1 periodic fast task<br />128 event tasks<br />1 cyclic/periodic master task<br />2 auxiliary tasks
Cybersecurity
Achilles certified<br />DoS prevention<br />IPSec<br />SNMP logging<br />Syslog protocol support<br />Transport layer security<br />Audit trail<br />Embedded firewall<br />Firmware signature<br />Password protection<br />Port hardening<br />Secure communication (HTTPS)<br />Security log
Number of instructions per ms
40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />50 Kinst/ms 100 % Boolean
Current consumption
300 mA 24 V DC
MTBF reliability
775000 H
marking
CE
Vibration resistance
3 gn
Shock resistance
30 gn
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Operating altitude
0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor
Relative humidity
5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection
IP20
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy
Standards
IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G
Environmental characteristic
Hazardous location class I division 2
Supply
Internal power supply via rack
Status LED
1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status)<br />1 LED (Green) I/O values overrided by user (FORCED IO)
Net Weight
1.872 lb(US) (0.849 kg)

Specifications may be subject to change without notice
