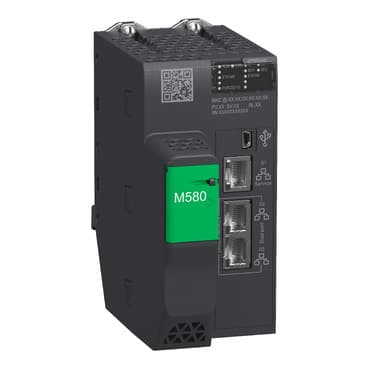

schneider BMEP585040C

Selling Points

  • 1High I/O Capacity: Supports up to 1280 analog and 5120 discrete I/O.
  • 2Robust Communication: Equipped with 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network ports, and a USB Type Mini B port.
  • 3Enhanced Reliability: Operating temperature range of -13 to 14°F (-25 to -10°C) ensures stable performance.
  • 4Cybersecure Operation: Designed with security in mind to manage cyber risks effectively.
  • 5Conformal Coating: Protected with conformal coating for durability in harsh environments.
Product Details
BMEP585040C
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M580
Product or Component Type
Processor module
Impregnation material
Conformal coated
Number of racks
8
Local I/O processor capacity (discrete)
5120 I/O
Local I/O processor capacity (analog)
1280 I/O
Number of application specific channel (local rack)
180
Application specific I/O
Accurate time stamping<br />Motion control<br />Serial link<br />HART<br />SSI encoder<br />Counter
Checks
Process control
Control channels
Programmable loops
Integrated connection type
1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B
Number of remote I/O station
31 - 2 remote drop
Number of distributed equipment
64
Communication module processor capacity
16 AS-Interface module<br />6 Ethernet communication module
Communication Service
RIO scanner<br />DIO scanner
Memory description
Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 24 MB program<br />Integrated RAM, 4096 kB data
Application structure
1 periodic fast task<br />2 auxiliary tasks<br />128 event tasks<br />1 cyclic/periodic master task
Number of instructions per ms
40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />50 Kinst/ms 100 % Boolean
Current consumption
300 mA 24 V DC
MTBF reliability
775000 H
marking
CE
Vibration resistance
3 gn
Shock resistance
30 gn
Ambient Air Temperature for Operation
-13…140 °F (-25…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Operating altitude
0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor
Relative humidity
5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection
IP20
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22
Standards
IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />IEC 60079-0
Environmental characteristic
Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2
Protective treatment
Conformal coating
Supply
Internal power supply via rack
Status LED
1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status)<br />1 LED (Green) I/O values overrided by user (FORCED IO)
Net Weight
1.872 lb(US) (0.849 kg)

Specifications may be subject to change without notice
