schneiderPLC/PAC and Controllers
Product Model

BMEP58CPROS3

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

29520

In Stock
Last updated: 2025/4/19
View Specifications

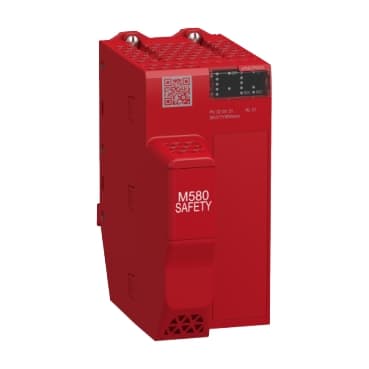

schneider BMEP58CPROS3

Selling Points

  • 1High-Performance Processing: The BMEP58CPROS3 offers robust processing capabilities, ensuring reliable operation in safety-critical applications.
  • 2Advanced I/O Capabilities: Equipped with 1024 analog and 4096 discrete I/O, this coprocessor provides comprehensive input/output functionality.
  • 3Safety Certification: Meets SIL3 standards, ensuring high safety levels in industrial control systems.
  • 4Compact Design: Dimensions are 2.54 in W x 5.3 in D x 5.13 in H, making it suitable for rack mounting.
  • 5Wide Operating Range: Operates between -25°C to 60°C, accommodating various environmental conditions.
Product Details
BMEP58CPROS3
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M580
Product or Component Type
Processor module
Current consumption
295 mA 24 V DC
MTBF reliability
946000 H
marking
CE
Vibration resistance
3 gn
Shock resistance
15 gn
Ambient Air Temperature for Operation
-13…140 °F (-25…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Operating altitude
0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor
Relative humidity
5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection
IP20
Directives
2014/30/EU - electromagnetic compatibility<br />2006/42/EC - machinery<br />2014/34/EU - ATEX directive
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22<br />TÜV
Standards
EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0
Environmental characteristic
Hazardous location class I division 2<br />Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3
Protective treatment
Conformal coating
Safety level
SIL 3<br />PL = e
Supply
Internal power supply via rack
Status LED
1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Green) download in progress (DL)<br />1 LED (Green) processor in safety mode (SRUN)<br />1 LED (Green) processor in maintenance mode (SMOD)
Net Weight
1.872 lb(US) (0.849 kg)

Specifications may be subject to change without notice
