Product Model

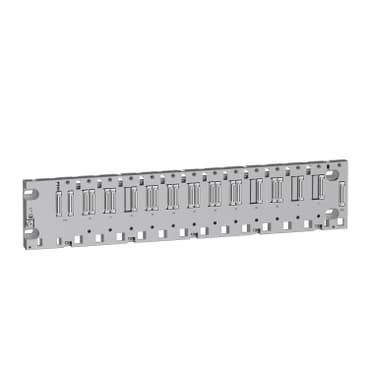

BMEXBP1200
Selling Points
- 112 Slots for Modular Expansion: The BMEXBP1200 offers 12 slots for easy expansion of your Modicon X80 system.
- 2Ethernet Backplane Connectivity: Equipped with an Ethernet backplane for seamless communication and data transfer.
- 3IP20 Protection for Harsh Environments: Designed with IP20 protection, ensuring reliability in the harshest environments.
- 4Wide Operating Temperature Range: Operates between 0°C to 60°C, making it suitable for various industrial settings.
- 5Efficient Power Consumption: Consumes only 3.9W of power at 24V DC, reducing energy costs and environmental impact.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | accessory / separate part type | Rack |
Number of slots | 8 bus X + Ethernet<br />4 bus X | Product Compatibility | I/O module<br />Specific application module<br />BMXCPS power supply<br />BMX processor<br />BME processor |
Power consumption in W | 283 mW 3.3 V DC<br />3.9 W 24 V DC | Electrical connection | 1 connector (XBE) expansion module |
Fixing mode | By 4 M6 screws plate<br />By 4 screws 0.17…0.25 in (4.32…6.35 mm) panel | Current consumption | 164 mA 24 V DC<br />86 mA 3.3 V DC |
MTBF reliability | 1166108 H | Net Weight | 3.036 lb(US) (1.377 kg) |
IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Relative Humidity | 5…95 % without condensation | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Specifications may be subject to change without notice
