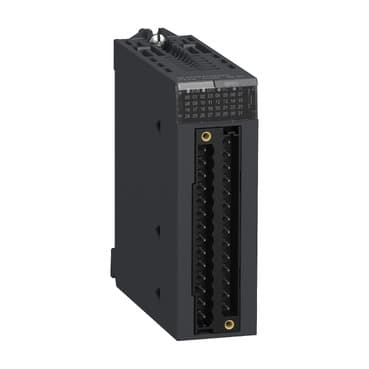

Product Model
BMXAMI0810
Selling Points
- 1High Precision Analog Input: 8 isolated channels with 15-bit resolution and sign representation for accurate signal processing.
- 2Wide Temperature Range: Operates from 0 to +60 degrees Celsius, ensuring stability in various environmental conditions.
- 3IP20 Protection: Robust IP20 rating for electronic protection against dust and water, ideal for industrial applications.
- 4Fast Read Cycle Time: 9 ms read cycle time for all eight channels, ensuring timely data retrieval.
- 5Versatile Input Types: Supports various input types including current (±20 mA, 4-20 mA) and voltage (±10 V, ±5 V) configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Analog input module |
Electrical connection | 28 ways 1 connector | Isolation between channels | Isolated |
Input level | High level | Analogue input number | 8 |
Analogue input type | Current +/- 20 mA<br />Current 0...20 mA<br />Current 4...20 mA<br />Voltage +/- 10 V<br />Voltage +/- 5 V<br />Voltage 0...10 V<br />Voltage 0...5 V<br />Voltage 1...5 V | Analog/digital conversion | 16 bits |
Analogue input resolution | 15 bits + sign | Permitted overload on inputs | +/- 30 mA 0...20 mA<br />+/- 30 mA 4...20 mA<br />+/- 30 V +/- 10 V<br />+/- 30 V +/- 5 V<br />+/- 30 V 0...10 V<br />+/- 30 V 0...5 V<br />+/- 30 V 1...5 V<br />+/- 30 mA +/- 20 mA |
Input impedance | 10 MOhm in voltage mode<br />250 Ohm + 3.6...50 Ohm internal protective resistor in current mode | Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
Type of filter | First order digital filtering | Fast read cycle time | 1 ms + 1 ms x number of channels used |
Nominal read cycle time | 9 ms for 8 channels | Measurement error | <= 0.1 % of full scale +/- 10 V 0...60 °C<br /><= 0.1 % of full scale +/- 5 V 0...60 °C<br /><= 0.1 % of full scale 0...10 V 0...60 °C<br /><= 0.1 % of full scale 0...5 V 0...60 °C<br /><= 0.1 % of full scale 1...5 V 0...60 °C<br /><= 0.3 % of full scale +/- 20 mA 0...60 °C<br /><= 0.3 % of full scale 0...20 mA 0...60 °C<br /><= 0.3 % of full scale 4...20 mA 0...60 °C<br />0.15 % of full scale +/- 20 mA 25 °C<br />0.15 % of full scale 0...20 mA 25 °C<br />0.15 % of full scale 4...20 mA 25 °C<br />0.075 % of full scale +/- 10 V 25 °C<br />0.075 % of full scale 0...10 V 25 °C<br />0.075 % of full scale 0...5 V 25 °C<br />0.075 % of full scale 1...5 V 25 °C<br />0.075 % of full scale +/- 5 V 25 °C |
Temperature drift | 30 ppm/°C +/- 10 V<br />30 ppm/°C +/- 5 V<br />30 ppm/°C 0...10 V<br />30 ppm/°C 0...5 V<br />30 ppm/°C 1...5 V<br />50 ppm/°C +/- 20 mA<br />50 ppm/°C 0...20 mA<br />50 ppm/°C 4...20 mA | Minimum crosstalk attenuation | 80 dB |
Common mode rejection | 80 dB | Digital value format | - 32768 to + 32767 in maximum user scale<br />+/- 10000 by default |
Isolation voltage | 300 V DC between channels<br />1400 V DC between channels and ground<br />1400 V DC between channels and bus | Measurement resolution | 0.36 mV +/- 10 V<br />0.36 mV 0...10 V<br />0.36 mV 0...5 V<br />0.36 mV 1...5 V<br />0.36 mV +/- 5 V<br />1.4 µA +/- 20 mA<br />1.4 µA 0...20 mA<br />1.4 µA 4...20 mA |
Maximum conversion value | +/- 11.4 V +/- 10 V<br />+/- 11.4 V 0...10 V<br />+/- 11.4 V 0...5 V<br />+/- 11.4 V 1...5 V<br />0...30 mA +/- 20 mA<br />0...30 mA 0...20 mA<br />0...30 mA 4...20 mA<br />0...30 mA +/- 5 V | MTBF reliability | 900000 H |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor | Status LED | 1 LED (Green) RUN<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) ERR<br />1 LED (Red) I/O |
Net Weight | 0.364 lb(US) (0.165 kg) | Power consumption in W | 1.06 W 24 V DC typical<br />1.50 W 24 V DC maximum<br />0.32 W 3.3 V DC typical<br />0.48 W 3.3 V DC maximum |
Current consumption | 150 mA 3.3 V DC<br />54 mA 24 V DC | Vibration resistance | 3 gn |
Shock resistance | 30 gn | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Product Certifications | CE<br />RCM<br />CSA<br />EAC<br />Merchant Navy<br />UL | Standards | EN/IEC 61010-2-201<br />EN/IEC 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201 |
Specifications may be subject to change without notice
