Product Model

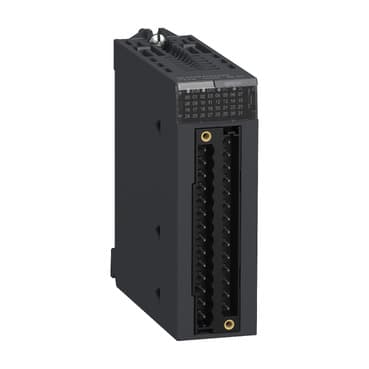

BMXAMI0810H
Selling Points
- 1High-Speed Performance: Fast read cycle time of 1 ms + 1 ms per channel.
- 2Isolated Design: Provides 300 V DC isolation between channels and 1400 V DC isolation between channels and ground.
- 3Multiple Input Types: Supports current (0-20 mA, 4-20 mA) and voltage (±10 V, ±5 V, 0-10 V, 0-5 V) inputs.
- 4High Resolution: Offers 15-bit resolution with 16-bit conversion rate.
- 5Durable Construction: Operates in severe environments with a temperature range of -13°C to 158°C and meets IP20 protection standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Analog input module |
Product Specific Application | For severe environments | Electrical connection | 28 ways 1 connector |
Isolation between channels | Isolated | Input level | High level |
Analogue input number | 8 | Analogue input type | Current +/- 20 mA<br />Current 0...20 mA<br />Current 4...20 mA<br />Voltage +/- 10 V<br />Voltage +/- 5 V<br />Voltage 0...10 V<br />Voltage 0...5 V<br />Voltage 1...5 V |
Analog/digital conversion | 16 bits | Analogue input resolution | 15 bits + sign |
Permitted overload on inputs | +/- 30 mA 0...20 mA<br />+/- 30 mA 4...20 mA<br />+/- 30 V +/- 10 V<br />+/- 30 V +/- 5 V<br />+/- 30 V 0...10 V<br />+/- 30 V 0...5 V<br />+/- 30 V 1...5 V<br />+/- 30 mA +/- 20 mA | Input impedance | 10 MOhm in voltage mode<br />250 Ohm + 3.6...50 Ohm internal protective resistor in current mode |
Precision of internal conversion resistor | 0.1 % - 15 ppm/°C | Type of filter | First order digital filtering |
Fast read cycle time | 1 ms + 1 ms x number of channels used | Nominal read cycle time | 9 ms for 8 channels |
Measurement error | 0.15 % of full scale +/- 20 mA 25 °C<br />0.15 % of full scale 0...20 mA 25 °C<br />0.15 % of full scale 4...20 mA 25 °C<br />0.075 % of full scale +/- 10 V 25 °C<br />0.075 % of full scale 0...10 V 25 °C<br />0.075 % of full scale 0...5 V 25 °C<br />0.075 % of full scale 1...5 V 25 °C<br />0.075 % of full scale +/- 5 V 25 °C<br /><= 0.2 % of full scale +/- 10 V - 25...70 °C<br /><= 0.2 % of full scale +/- 5 V - 25...70 °C<br /><= 0.2 % of full scale 0...10 V - 25...70 °C<br /><= 0.2 % of full scale 0...5 V - 25...70 °C<br /><= 0.2 % of full scale 1...5 V - 25...70 °C<br /><= 0.55 % of full scale +/- 20 mA - 25...70 °C<br /><= 0.55 % of full scale 0...20 mA - 25...70 °C<br /><= 0.55 % of full scale 4...20 mA - 25...70 °C | Temperature drift | 30 ppm/°C +/- 10 V<br />30 ppm/°C +/- 5 V<br />30 ppm/°C 0...10 V<br />30 ppm/°C 0...5 V<br />30 ppm/°C 1...5 V<br />50 ppm/°C +/- 20 mA<br />50 ppm/°C 0...20 mA<br />50 ppm/°C 4...20 mA |
Minimum crosstalk attenuation | 80 dB | Common mode rejection | 80 dB |
Digital value format | - 32768 to + 32767 in maximum user scale<br />+/- 10000 by default | Isolation voltage | 300 V DC between channels<br />1400 V DC between channels and ground<br />1400 V DC between channels and bus |
Measurement resolution | 0.36 mV +/- 10 V<br />0.36 mV 0...10 V<br />0.36 mV 0...5 V<br />0.36 mV 1...5 V<br />0.36 mV +/- 5 V<br />1.4 µA +/- 20 mA<br />1.4 µA 0...20 mA<br />1.4 µA 4...20 mA | Maximum conversion value | +/- 11.4 V +/- 10 V<br />+/- 11.4 V 0...10 V<br />+/- 11.4 V 0...5 V<br />+/- 11.4 V 1...5 V<br />0...30 mA +/- 20 mA<br />0...30 mA 0...20 mA<br />0...30 mA 4...20 mA<br />0...30 mA +/- 5 V |
MTBF reliability | 900000 H | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Status LED | 1 LED (Green) RUN<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) ERR<br />1 LED (Red) I/O | Net Weight | 0.386 lb(US) (0.175 kg) |
Power consumption in W | 1.06 W 24 V DC typical<br />1.50 W 24 V DC maximum<br />0.32 W 3.3 V DC typical<br />0.48 W 3.3 V DC maximum | Current consumption | 150 mA 3.3 V DC<br />54 mA 24 V DC |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Relative humidity | 5…95 % 131 °F (55 °C) without condensation | IP Degree of Protection | IP20 |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Product Certifications | CE<br />RCM<br />CSA<br />EAC<br />Merchant Navy<br />UL<br />ATEX<br />IEC-Ex |
Standards | EN/IEC 61010-2-201<br />EN/IEC 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201 | Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2<br />Hazardous location |
Protective treatment | Conformal coating |
Specifications may be subject to change without notice
