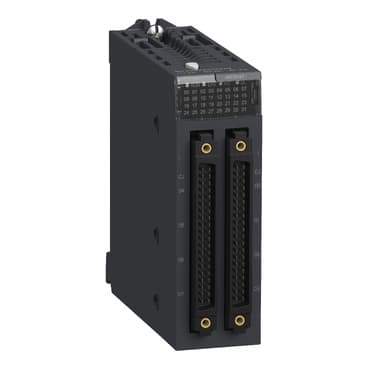

Product Model
BMXART0814H
Selling Points
- 1Ruggedized Design: Built to withstand harsh environments with a temperature rating of -25 to 70°C.
- 2High Resolution: Features 16-bit resolution for precise analog input.
- 3Isolated Inputs: Ensures reliable operation with isolated low-level inputs.
- 4Versatile Connectivity: Equipped with two 40-way connectors for easy integration.
- 5Mercury-Free: Compliant with environmental regulations, making it a sustainable choice.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Analog input module |
Product Specific Application | For severe environments | Electrical connection | 40 ways 2 connectors |
Isolation between channels | Isolated | Input level | Low level |
Analogue input number | 8 | Analogue input type | Voltage +/- 1.28 V<br />Voltage +/- 160 mV<br />Voltage +/- 320 mV<br />Voltage +/- 40 mV<br />Voltage +/- 640 mV<br />Voltage +/- 80 mV<br />Resistor 400 Ohm 2 wires<br />Resistor 400 Ohm 3 wires<br />Resistor 400 Ohm 4 wires<br />Resistor 4000 Ohm 2 wires<br />Resistor 4000 Ohm 3 wires<br />Resistor 4000 Ohm 4 wires<br />Temperature probe -100...+260 °C Cu 10<br />Temperature probe -100...+450 °C Pt 100 UL/JIS<br />Temperature probe -100...+450 °C Pt 1000 UL/JIS<br />Temperature probe -200...+850 °C Pt 100 IEC<br />Temperature probe -200...+850 °C Pt 1000 IEC<br />Temperature probe -60...+180 °C Ni 100<br />Temperature probe -60...+180 °C Ni 1000<br />Thermocouple +130...+1820 °C thermocouple B<br />Thermocouple +270...+1300 °C thermocouple N<br />Thermocouple -200...+600 °C thermocouple U<br />Thermocouple -200...+760 °C thermocouple J<br />Thermocouple -200...+900 °C thermocouple L<br />Thermocouple -270...+1000 °C thermocouple E<br />Thermocouple -270...+1370 °C thermocouple K<br />Thermocouple -270...+400 °C thermocouple T<br />Thermocouple -50...+1769 °C thermocouple R<br />Thermocouple -50...+1769 °C thermocouple S |
Analog/digital conversion | Sigma delta 16 bits | Analogue input resolution | 15 bits + sign |
Permitted overload on inputs | +/- 7.5 V +/- 1.28 V<br />+/- 7.5 V +/- 160 mV<br />+/- 7.5 V +/- 320 mV<br />+/- 7.5 V +/- 40 mV<br />+/- 7.5 V +/- 640 mV<br />+/- 7.5 V +/- 80 mV | Common mode rejection | 120 dB 50/60 Hz |
Differential mode rejection | 60 dB 50/60 Hz | Cold junction compensation | External by Pt100 probe |
Type of filter | First order digital filtering | Nominal read cycle time | 400 ms with temperature probe<br />200 ms with thermocouple |
Measurement error | +/- 0.7 °C Ni 1000 25 °C<br />+/- 2.1 °C Ni 100 25 °C<br />+/- 2.1 °C Pt 100 25 °C<br />+/- 2.1 °C Pt 1000 25 °C<br />+/- 2.7 °C thermocouple U 25 °C<br />+/- 2.8 °C thermocouple J 25 °C<br />+/- 3 °C thermocouple L 25 °C<br />+/- 3.2 °C thermocouple R 25 °C<br />+/- 3.2 °C thermocouple S 25 °C<br />+/- 3.5 °C thermocouple B 25 °C<br />+/- 3.7 °C thermocouple E 25 °C<br />+/- 3.7 °C thermocouple K 25 °C<br />+/- 3.7 °C thermocouple N 25 °C<br />+/- 3.7 °C thermocouple T 25 °C<br />+/- 4 °C Cu 10 25 °C<br />0.05 % of full scale +/- 1.28 V 25 °C<br />0.05 % of full scale +/- 160 mV 25 °C<br />0.05 % of full scale +/- 320 mV 25 °C<br />0.05 % of full scale +/- 40 mV 25 °C<br />0.05 % of full scale +/- 640 mV 25 °C<br />0.05 % of full scale +/- 80 mV 25 °C<br />0.12 % of full scale 400 Ohm 25 °C<br />0.12 % of full scale 4000 Ohm 25 °C<br />+/- 1.5 °C Ni 1000 - 25...70 °C<br />+/- 3.5 °C Ni 100 - 25...70 °C<br />+/- 3.5 °C Pt 100 - 25...70 °C<br />+/- 3.5 °C Pt 1000 - 25...70 °C<br />+/- 4.5 °C Cu 10 - 25...70 °C<br />+/- 5.5 °C thermocouple J - 25...70 °C<br />+/- 5.5 °C thermocouple L - 25...70 °C<br />+/- 5.5 °C thermocouple R - 25...70 °C<br />+/- 5.5 °C thermocouple S - 25...70 °C<br />+/- 5.5 °C thermocouple U - 25...70 °C<br />+/- 6 °C thermocouple B - 25...70 °C<br />+/- 6 °C thermocouple E - 25...70 °C<br />+/- 6 °C thermocouple K - 25...70 °C<br />+/- 6 °C thermocouple N - 25...70 °C<br />+/- 6 °C thermocouple T - 25...70 °C<br /><= 0.2 % of full scale +/- 1.28 V - 25...70 °C<br /><= 0.2 % of full scale +/- 160 mV - 25...70 °C<br /><= 0.2 % of full scale +/- 320 mV - 25...70 °C<br /><= 0.2 % of full scale +/- 40 mV - 25...70 °C<br /><= 0.2 % of full scale +/- 640 mV - 25...70 °C<br /><= 0.2 % of full scale +/- 80 mV - 25...70 °C<br /><= 0.3 % of full scale 400 Ohm - 25...70 °C<br /><= 0.3 % of full scale 4000 Ohm - 25...70 °C | Temperature drift | 25 ppm/°C 400 Ohm<br />25 ppm/°C 4000 Ohm<br />25 ppm/°C Ni 1000<br />25 ppm/°C thermocouple B<br />25 ppm/°C thermocouple E<br />25 ppm/°C thermocouple J<br />25 ppm/°C thermocouple K<br />25 ppm/°C thermocouple L<br />25 ppm/°C thermocouple N<br />25 ppm/°C thermocouple R<br />25 ppm/°C thermocouple S<br />25 ppm/°C thermocouple T<br />25 ppm/°C thermocouple U<br />30 ppm/°C +/- 1.28 V<br />30 ppm/°C +/- 160 mV<br />30 ppm/°C +/- 320 mV<br />30 ppm/°C +/- 40 mV<br />30 ppm/°C +/- 640 mV<br />30 ppm/°C +/- 80 mV<br />30 ppm/°C Cu 10<br />30 ppm/°C Ni 100<br />30 ppm/°C Pt 100<br />30 ppm/°C Pt 1000 |
Recalibration | Internal | Detection type | Open circuit Cu 10<br />Open circuit Ni 100<br />Open circuit Ni 1000<br />Open circuit Pt 100<br />Open circuit Pt 1000<br />Open circuit thermocouple B<br />Open circuit thermocouple E<br />Open circuit thermocouple J<br />Open circuit thermocouple K<br />Open circuit thermocouple L<br />Open circuit thermocouple N<br />Open circuit thermocouple R<br />Open circuit thermocouple S<br />Open circuit thermocouple T<br />Open circuit thermocouple U |
Maximum wiring resistance | 20 Ohm 2 wires Cu 10<br />20 Ohm 2 wires Ni 100<br />20 Ohm 2 wires Pt 100<br />20 Ohm 3 wires Cu 10<br />20 Ohm 3 wires Ni 100<br />20 Ohm 3 wires Pt 100<br />200 Ohm 2 wires Ni 1000<br />200 Ohm 2 wires Pt 1000<br />200 Ohm 3 wires Ni 1000<br />200 Ohm 3 wires Pt 1000<br />50 Ohm 4 wires Cu 10<br />50 Ohm 4 wires Ni 100<br />50 Ohm 4 wires Pt 100<br />500 Ohm 4 wires Ni 1000<br />500 Ohm 4 wires Pt 1000 | Measurement resolution | 0.1 °C Cu 10<br />0.1 °C Ni 100<br />0.1 °C Ni 1000<br />0.1 °C Pt 100<br />0.1 °C Pt 1000<br />0.1 °C thermocouple B<br />0.1 °C thermocouple E<br />0.1 °C thermocouple J<br />0.1 °C thermocouple K<br />0.1 °C thermocouple L<br />0.1 °C thermocouple N<br />0.1 °C thermocouple R<br />0.1 °C thermocouple S<br />0.1 °C thermocouple T<br />0.1 °C thermocouple U<br />1280/2exp14 mV +/- 1.28 V<br />160/2exp14 mV +/- 160 mV<br />320/2exp14 mV +/- 320 mV<br />40/2exp14 mV +/- 40 mV<br />12.5 mOhm 400 Ohm<br />125 mOhm 4000 Ohm<br />640/2exp14 mV +/- 640 mV<br />80/2exp14 mV +/- 80 mV |
Maximum conversion value | +/- 100 % 400 Ohm<br />+/- 100 % 4000 Ohm<br />+/- 102.5 % +/- 1.28 V<br />+/- 102.5 % +/- 160 mV<br />+/- 102.5 % +/- 320 mV<br />+/- 102.5 % +/- 40 mV<br />+/- 102.5 % +/- 640 mV<br />+/- 102.5 % +/- 80 mV | MTBF reliability | 900000 H |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor | Status LED | 1 LED (Green) RUN<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) ERR<br />1 LED (Red) I/O |
Net Weight | 0.364 lb(US) (0.165 kg) | Current consumption | 150 mA 3.3 V DC<br />50 mA 24 V DC |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Relative humidity | 5…95 % 131 °F (55 °C) without condensation | IP Degree of Protection | IP20 |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Product Certifications | CSA<br />UL<br />IEC-Ex<br />CE<br />Merchant Navy<br />RCM<br />ATEX<br />EAC |
Standards | IEC 61131-2<br />IEC 61000-6-4<br />IEC 61000-6-2<br />EN 61010-2-201 | Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2<br />Hazardous location class I division 2 |
Protective treatment | Conformal coating |
Specifications may be subject to change without notice
