Product Model

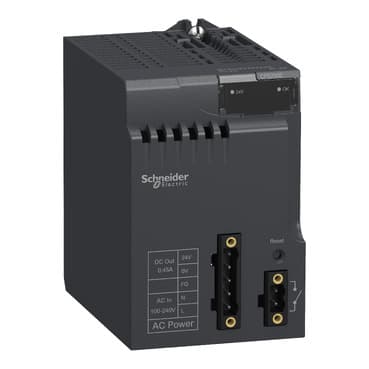

BMXCPS2000
Selling Points
- 1Operates on 100-240 V AC, ensuring flexibility in various applications.
- 2Provides 24 V DC for sensors, I/O modules, and processors, supporting diverse system configurations.
- 3Equipped with internal fuse, overload protection, overvoltage protection, and short-circuit protection for enhanced reliability.
- 4Consumes only 20 W of power, making it an energy-efficient solution for industrial automation.
- 5Compliant with EU RoHS and China RoHS regulations, ensuring environmental sustainability and compliance with latest regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Power supply module |
backplane compatibility | Not compatible with BMEXBP..02 | Primary Voltage | 100...240 V |
Supply circuit type | AC | Secondary power | 10.8 W 24 V DC sensor power supply<br />16.8 W 24 V DC I/O module power supply and processor<br />8.3 W 3.3 V DC I/O module logic power supply |
Primary voltage limit | 85...264 V | Network Frequency | 50/60 Hz |
Network frequency limits | 47…63 Hz | Apparent power | 0.07 kVA |
Input current | 0.31 A 240 V<br />0.61 A 115 V | Inrush current | 30 A 120 V<br />60 A 240 V |
I²t on activation | 12 A².s 240 V | It on activation | 0.06 A.s 240 V<br />0.03 A.s 120 V |
MTBF reliability | 4638000 H | Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit |
Current at secondary voltage | 0.45 A 24 V DC sensor power supply<br />0.7 A 24 V DC I/O module power supply and processor<br />2.5 A 3.3 V DC I/O module logic power supply | Maximum power dissipation in W | 8.5 W |
Status LED | 1 LED (Green) rack voltage OK<br />1 LED (Green) sensor voltage | Control Type | RESET push-button cold restart |
Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth, 24 V DC input sensor | Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary |
Net Weight | 0.7 lb(US) (0.3 kg) | Immunity to microbreaks | 1 ms |
Dielectric strength | 1500 V primary/secondary I/O module logic power supply<br />1500 V primary/secondary I/O module power supply and processor<br />2300 V primary/secondary sensor power supply<br />1500 V primary/ground<br />500 V 24 V sensor output/ground | Vibration resistance | 3 gn |
Shock resistance | 30 gn | IP Degree of Protection | IP20 |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
Protective treatment | TC | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
