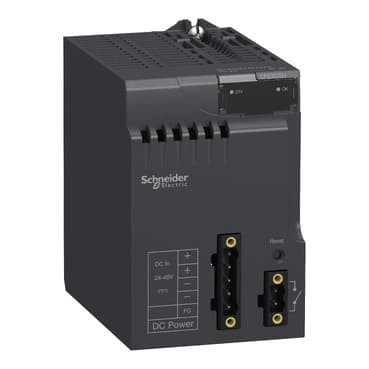

Product Model
BMXCPS3020H
Selling Points
- 1Isolated Power Supply: Provides a safe and reliable power supply with an isolated primary voltage of 24V to 48V DC.
- 2High Current Rating: Delivers 830mA, ensuring sufficient power for demanding industrial applications.
- 3Modicon X80 Compatibility: Specifically designed for the Modicon X80 Series, ensuring seamless integration and compatibility.
- 4Extended Temperature Range: Capable of operating in extended temperature conditions, making it suitable for harsh environments.
- 5Compliance Certifications: Meets RoHS and phthalates compliance standards, ensuring environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Power supply module |
backplane compatibility | Not compatible with BMEXBP..02 | Product Specific Application | For severe environments |
Primary Voltage | 24...48 V isolated | Supply circuit type | DC |
Secondary power | 15 W 3.3 V DC 32…140 °F (0…60 °C) I/O module logic power supply<br />31.2 W 24 V DC 32…140 °F (0…60 °C) I/O module power supply and processor<br />11.3 W 3.3 V DC -13…158 °F (-25…70 °C) I/O module logic power supply<br />23.4 W 24 V DC -13…158 °F (-25…70 °C) I/O module power supply and processor | Primary voltage limit | 18...62.4 V |
Input current | 0.83 A 48 V<br />1.65 A 24 V | Inrush current | 30 A 24 V<br />60 A 48 V |
I²t on activation | 1 A².s 24 V<br />3 A².s 48 V | It on activation | 0.2 A.s 24 V<br />0.3 A.s 48 V |
MTBF reliability | 4600000 H | Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit, 24 V sensor power supply<br />Overvoltage protection secondary circuit, 24 V sensor power supply<br />Short-circuit protection secondary circuit, 24 V sensor power supply |
Current at secondary voltage | 1.3 A 24 V DC I/O module power supply and processor<br />4.5 A 3.3 V DC I/O module logic power supply | Maximum power dissipation in W | 8.5 W |
Status LED | 1 LED (Green) rack voltage OK | Control Type | RESET push-button cold restart |
Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth | Maximum cable distance between devices | 32.8 ft (10 m) power supply cable copper 0.002 in² (1.5 mm²)<br />49.2 ft (15 m) power supply cable copper 0.004 in² (2.5 mm²) |
Insulation resistance | >= 10 MOhm primary/ground<br />>= 10 MOhm primary/secondary | Net Weight | 0.75 lb(US) (0.34 kg) |
Immunity to microbreaks | 1 ms | Dielectric strength | 1500 V primary/ground<br />1500 V primary/secondary |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive |
Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 | Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />IEC 60079-0 |
Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
Protective treatment | Conformal coating | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
