Product Model

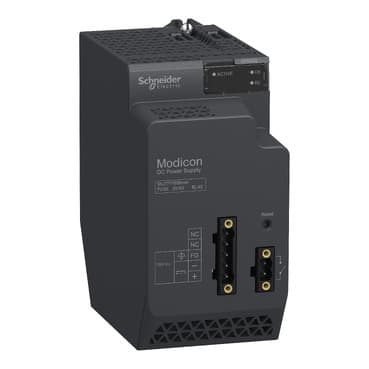

BMXCPS3522
Selling Points
- 1Ensures continuous operation with dual power sources.
- 2Designed specifically for Modicon X80 rack and modules.
- 3Outputs 3.3 to 24V DC, suitable for various I/O modules.
- 4Provides 1.67A/5A output current for efficient module power supply.
- 5Includes internal fuse, overload, overvoltage, and short-circuit protections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Power supply module |
backplane compatibility | All backplane | advanced diagnostics available via network | Uptime duration<br />Temperature sensing<br />Remaining lifetime<br />Redundancy information<br />Redundancy test |
Primary Voltage | 125 V | Supply circuit type | DC |
Secondary power | 18 W 3.3 V DC 32…140 °F (0…60 °C) I/O module logic power supply<br />40 W 24 V DC 32…140 °F (0…60 °C) I/O module power supply and processor if 3.3 V not loaded | Primary voltage limit | 100...150 V |
Input current | 600 mA 125 V | Inrush current | 60 A 125 V |
I²t on activation | 2.5 A².s 125 V | It on activation | 0.09 A.s 125 V |
MTBF reliability | 830000 H | Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit |
Current at secondary voltage | 1.67 A 24 V DC I/O module power supply and processor<br />5 A 3.3 V DC I/O module logic power supply | Maximum power dissipation in W | 8.5 W |
Status LED | 1 LED (Green) presence of voltages (OK)<br />1 LED (Green) redundancy OK<br />1 LED (Green) power supply status | Control Type | RESET push-button cold restart |
Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth | Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary |
Net Weight | 1.34 lb(US) (0.61 kg) | Immunity to microbreaks | 1 ms |
Dielectric strength | 1500 V primary/secondary I/O module logic power supply<br />1500 V primary/secondary I/O module power supply and processor<br />2300 V primary/secondary sensor power supply<br />1500 V primary/ground | IP Degree of Protection | IP20 |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Environmental characteristic | 3C3 IEC 60721-3-3<br />3C4 IEC 60721-3-3 |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Relative humidity | 10…95 % without condensation |
Specifications may be subject to change without notice
