Product Model

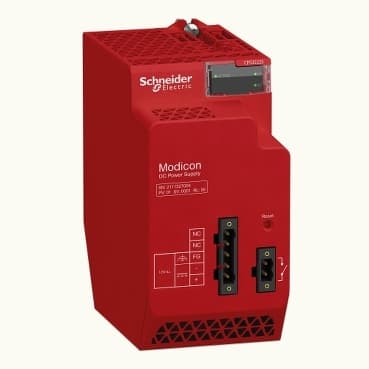

BMXCPS3522S
Selling Points
- 1Redundant Design for Optimal Uptime: Ensures continuous operation with dual power sources.
- 2Advanced Diagnostics: Provides real-time monitoring and alerts via network connectivity.
- 3Hazardous Location Compliance: Meets ATEX and IECEx zone 2/22 standards for safe operation in explosive environments.
- 4High Reliability: Features internal fuse protection, overload protection, and overvoltage protection.
- 5Wide Operating Temperature Range: Operates between -25°C to 60°C, suitable for various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Power supply module |
backplane compatibility | All backplane | advanced diagnostics available via network | Redundancy information<br />Redundancy test<br />Remaining lifetime<br />Temperature sensing<br />Uptime duration |
Primary Voltage | 125 V | Supply circuit type | DC |
Secondary power | 18 W 3.3 V DC -13…140 °F (-25…60 °C) I/O module logic power supply<br />40 W 24 V DC -13…140 °F (-25…60 °C) I/O module power supply and processor if 3.3 V not loaded | Primary voltage limit | 100...150 V |
Input current | 600 A 125 V | Inrush current | 60 A 125 V |
I²t on activation | 2.5 A².s 125 V | It on activation | 0.09 A.s 125 V |
MTBF reliability | 791000 H | Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit |
Current at secondary voltage | 1.67 A 24 V DC I/O module logic power supply<br />5 A 3.3 V DC I/O module power supply and processor | Maximum power dissipation in W | 8.5 W |
Status LED | 1 LED (Green) presence of voltages (OK)<br />1 LED (Green) redundancy OK<br />1 LED (Green) power supply status | Control Type | RESET push-button cold restart |
Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth | Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary |
Net Weight | 1.41 lb(US) (0.64 kg) | Immunity to microbreaks | 1 ms |
Dielectric strength | 1500 V primary/secondary I/O module logic power supply<br />1500 V primary/secondary I/O module power supply and processor<br />2300 V primary/secondary sensor power supply<br />1500 V primary/ground | Vibration resistance | 3 gn |
Shock resistance | 15 gn | IP Degree of Protection | IP20 |
Directives | 2014/30/EU - electromagnetic compatibility<br />2006/42/EC - machinery<br />2014/34/EU - ATEX directive | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22<br />TÜV |
Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 | Environmental characteristic | Hazardous location class I division 2<br />Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3 |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
Relative humidity | 5…95 % 131 °F (55 °C) without condensation | Protective treatment | Conformal coating |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
