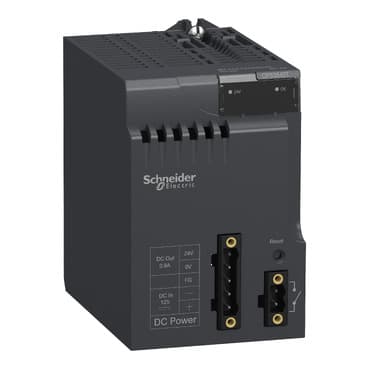

Product Model
BMXCPS3540T
Selling Points
- 1Operates between -25°C to 70°C.
- 2Provides 15 W at 3.3 V DC and 31.2 W at 24 V DC.
- 3Meets RoHS, CE, and Class 1 Div 2 CSA standards.
- 4Features internal fuse for primary circuit protection and overvoltage protection for secondary circuit.
- 5Compliant with Schneider Electric's Green Premium program, ensuring best-in-class environmental performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Power supply module |
backplane compatibility | Not compatible with BMEXBP..02 | Product Specific Application | Extended temperature |
Primary Voltage | 125 V | Supply circuit type | DC |
Secondary power | 15 W 3.3 V DC I/O module logic power supply<br />31.2 W 24 V DC I/O module power supply and processor | Primary voltage limit | 100...150 V |
Input current | 350 mA 125 V | Inrush current | 30 A 125 V |
I²t on activation | 2 A².s 125 V | It on activation | 0.05 A.s 125 V |
MTBF reliability | 4400000 H | Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit, 24 V sensor power supply<br />Overvoltage protection secondary circuit, 24 V sensor power supply<br />Short-circuit protection secondary circuit, 24 V sensor power supply |
Current at secondary voltage | 1.3 A 24 V DC I/O module power supply and processor<br />4.5 A 3.3 V DC I/O module logic power supply | Maximum power dissipation in W | 8.5 W |
Status LED | 1 LED (Green) rack voltage OK<br />1 LED (Green) sensor voltage | Control Type | RESET push-button cold restart |
Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth, 24 V DC input sensor | Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary |
Net Weight | 0.79 lb(US) (0.36 kg) | Immunity to microbreaks | 1 ms |
Dielectric strength | 2000 V primary/secondary I/O module logic power supply<br />500 V 24 V sensor output/ground | Vibration resistance | 3 gn |
Shock resistance | 30 gn | IP Degree of Protection | IP20 |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2 |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Relative humidity | 5…95 % 131 °F (55 °C) without condensation | Protective treatment | Conformal coating |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
