Product Model

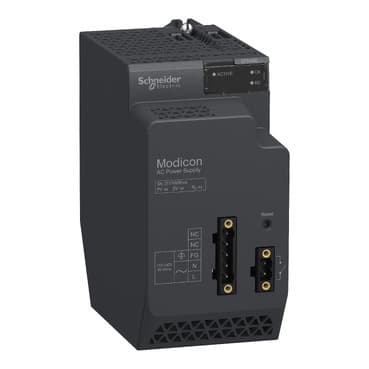

BMXCPS4002
Selling Points
- 1Efficient Power Delivery: Supplies stable power to I/O modules and processors with 18 W at 3.3 VDC and 40 W at 24 VDC.
- 2Wide Voltage Range: Compatible with a broad input voltage range of 100 to 240 VAC, ensuring adaptability in various industrial environments.
- 3Advanced Diagnostics: Features advanced diagnostics via network, including temperature sensing, redundancy testing, uptime duration, and remaining lifetime monitoring.
- 4Redundancy Support: Offers redundancy testing and information, providing backup support in case of power supply failure to maintain uninterrupted operations.
- 5Comprehensive Protection: Equipped with overload, overvoltage, and short-circuit protection for the secondary circuit, ensuring safety and reliability in industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Power supply module |
backplane compatibility | All backplane | advanced diagnostics available via network | Temperature sensing<br />Redundancy test<br />Uptime duration<br />Redundancy information<br />Remaining lifetime |
Primary Voltage | 100...240 V | Supply circuit type | AC |
Secondary power | 18 W 3.3 V DC 32…140 °F (0…60 °C) I/O module logic power supply<br />40 W 24 V DC 32…140 °F (0…60 °C) I/O module power supply and processor if 3.3 V not loaded | Primary voltage limit | 85...264 V |
Network Frequency | 50/60 Hz | Network frequency limits | 47…63 Hz |
Apparent power | 0.13 kVA | Input current | 0.55 A 240 V<br />1.01 A 115 V |
Inrush current | 30 A 120 V<br />60 A 240 V | I²t on activation | 1 A².s 115 V<br />4 A².s 230 V |
It on activation | 0.1 A.s 115 V<br />0.15 A.s 230 V | MTBF reliability | 792000 H |
Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit | Current at secondary voltage | 5.5 A 3.3 V DC I/O module logic power supply<br />1.67 A 24 V DC I/O module power supply and processor |
Maximum power dissipation in W | 8.5 W | Status LED | 1 LED (Green) presence of voltages (OK)<br />1 LED (Green) redundancy OK<br />1 LED (Green) power supply status |
Control Type | RESET push-button cold restart | Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth |
Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary | Net Weight | 1.12 lb(US) (0.51 kg) |
Immunity to microbreaks | 1 ms | Dielectric strength | 1500 V primary/secondary I/O module logic power supply<br />1500 V primary/secondary I/O module power supply and processor<br />2300 V primary/secondary sensor power supply<br />1500 V primary/ground<br />500 V 24 V sensor output/ground |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Environmental characteristic | 3C3 EN/IEC 60721-3-3<br />3C4 EN/IEC 60721-3-3 | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
Protective treatment | TC<br />Conformal coating Humiseal 1A33 | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
