Product Model

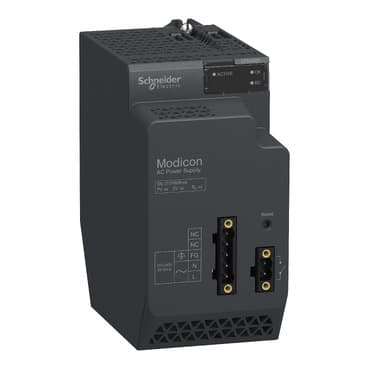

BMXCPS4002H
Selling Points
- 1Operates in severe environments with an extended temperature range from -25°C to +70°C.
- 2Supports primary voltage of 100V to 240V AC.
- 3Certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL for safety and reliability.
- 4Features temperature sensing, redundancy test, uptime duration, redundancy information, and remaining lifetime diagnostics.
- 5Equipped with 2-pin connector for alarm relay and 5-pin connector for line supply, along with protective earth for electrical connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Power supply module |
backplane compatibility | All backplane | Product Specific Application | For severe environments |
advanced diagnostics available via network | Remaining lifetime<br />Temperature sensing<br />Redundancy test<br />Redundancy information<br />Uptime duration | Primary Voltage | 100...240 V |
Supply circuit type | AC | Secondary power | 18 W 3.3 V DC -13…158 °F (-25…70 °C) I/O module logic power supply<br />40 W 24 V DC -13…158 °F (-25…70 °C) I/O module power supply and processor if 3.3 V not loaded |
Primary voltage limit | 85...264 V | Network Frequency | 50/60 Hz |
Network frequency limits | 47…63 Hz | Apparent power | 0.13 kVA |
Input current | 0.55 A 240 V<br />1.01 A 115 V | Inrush current | 30 A 120 V<br />60 A 240 V |
I²t on activation | 1 A².s 120 V<br />3 A².s 240 V | It on activation | 0.05 A.s 120 V<br />0.07 A.s 240 V |
MTBF reliability | 792000 H | Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit |
Current at secondary voltage | 5.5 A 3.3 V DC I/O module logic power supply<br />1.67 A 24 V DC I/O module power supply and processor | Maximum power dissipation in W | 8.5 W |
Status LED | 1 LED (Green) presence of voltages (OK)<br />1 LED (Green) redundancy OK<br />1 LED (Green) power supply status | Control Type | RESET push-button cold restart |
Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth | Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary |
Net Weight | 1.12 lb(US) (0.51 kg) | Immunity to microbreaks | 1 ms |
Dielectric strength | 1500 V primary/secondary I/O module logic power supply<br />1500 V primary/secondary I/O module power supply and processor<br />2300 V primary/secondary sensor power supply<br />1500 V primary/ground<br />500 V 24 V sensor output/ground | Vibration resistance | 3 gn |
Shock resistance | 30 gn | IP Degree of Protection | IP20 |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy |
Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G | Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Relative humidity | 5…95 % 131 °F (55 °C) without condensation | Protective treatment | Conformal coating |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
