Product Model

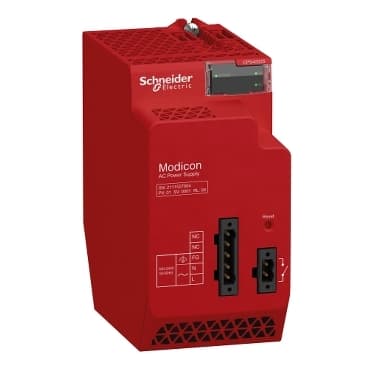

BMXCPS4002S
Selling Points
- 1Redundant Power Supply: Provides dual power sources for uninterrupted operation in critical industrial processes.
- 2Wide Input Voltage Range: Compatible with 100 to 240 VAC, accommodating various input voltage levels.
- 3Efficient Power Delivery: Delivers 40 W at 24 VDC and 18 W at 3.3 VDC for stable and reliable power.
- 4Advanced Diagnostics: Equipped with network monitoring and status checking capabilities for proactive maintenance.
- 5Comprehensive Protection: Includes overload, overvoltage, and short-circuit protection for the secondary circuit.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Power supply module |
backplane compatibility | All backplane | advanced diagnostics available via network | Redundancy information<br />Redundancy test<br />Temperature sensing<br />Remaining lifetime<br />Uptime duration |
Primary Voltage | 100...240 V | Supply circuit type | AC |
Secondary power | 15 W 3.3 V DC -13…140 °F (-25…60 °C) I/O module logic power supply<br />40 W 24 V DC -13…140 °F (-25…60 °C) I/O module power supply and processor if 3.3 V not loaded | Primary voltage limit | 85...264 V |
Network Frequency | 50/60 Hz | Network frequency limits | 47…63 Hz |
Apparent power | 0.13 kVA | Input current | 0.55 A 230 V<br />1.1 A 115 V |
Inrush current | 30 A 115 V<br />60 A 230 V | I²t on activation | 1 A².s 115 V<br />4 A².s 230 V |
It on activation | 0.1 A.s 115 V<br />0.15 A.s 230 V | MTBF reliability | 792000 H |
Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit | Current at secondary voltage | 4.5 A 3.3 V DC I/O module logic power supply<br />1.67 A 24 V DC I/O module power supply and processor |
Maximum power dissipation in W | 8.5 W | Status LED | 1 LED (Green) presence of voltages (OK)<br />1 LED (Green) redundancy OK<br />1 LED (Green) power supply status |
Control Type | RESET push-button cold restart | Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth |
Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary | Net Weight | 1.12 lb(US) (0.51 kg) |
Immunity to microbreaks | 10 ms | Dielectric strength | 1500 V primary/secondary I/O module logic power supply<br />1500 V primary/secondary I/O module power supply and processor<br />2300 V primary/secondary sensor power supply<br />1500 V primary/ground<br />500 V 24 V sensor output/ground |
Vibration resistance | 3 gn | Shock resistance | 15 gn |
IP Degree of Protection | IP20 | Directives | 2014/30/EU - electromagnetic compatibility<br />2006/42/EC - machinery<br />2014/34/EU - ATEX directive |
Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22<br />TÜV | Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 |
Environmental characteristic | Hazardous location class I division 2<br />Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3 | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
Protective treatment | Conformal coating | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
