Product Model

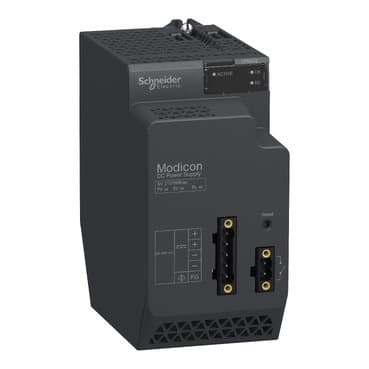

BMXCPS4022
Selling Points
- 1Redundant Power Supply Module: Ensures continuous operation with dual power sources.
- 2Wide Voltage Range: Compatible with 24 to 48 VDC input, providing flexibility in various applications.
- 3High Power Output: Delivers 40 W at 24 VDC and 18 W at 3.3 VDC, meeting demanding power needs.
- 4Advanced Diagnostics: Offers real-time monitoring via network with features like redundancy test, temperature sensing, and uptime duration.
- 5Robust Design: IP20 rated, with internal fuse protection, overvoltage protection, and short-circuit protection for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Power supply module |
backplane compatibility | All backplane | advanced diagnostics available via network | Redundancy information<br />Redundancy test<br />Temperature sensing<br />Remaining lifetime<br />Uptime duration |
Primary Voltage | 24...48 V | Supply circuit type | DC |
Secondary power | 18 W 3.3 V DC 32…140 °F (0…60 °C) I/O module logic power supply<br />40 W 24 V DC 32…140 °F (0…60 °C) I/O module power supply and processor if 3.3 V not loaded | Primary voltage limit | 18...62.4 V |
Input current | 1.9 A 24 V<br />1 A 48 V | Inrush current | 60 A 48 V<br />60 A 24 V |
I²t on activation | 0.4 A².s 24 V<br />1.9 A².s 48 V | It on activation | 0.05 A.s 24 V<br />0.08 A.s 48 V |
MTBF reliability | 752000 H | Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit |
Current at secondary voltage | 5.5 A 3.3 V DC I/O module logic power supply<br />1.67 A 24 V DC I/O module power supply and processor | Maximum power dissipation in W | 8.5 W |
Status LED | 1 LED (Green) presence of voltages (OK)<br />1 LED (Green) redundancy OK<br />1 LED (Green) power supply status | Control Type | RESET push-button cold restart |
Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth | Maximum cable distance between devices | 32.8 ft (10 m)<br />49.2 ft (15 m) |
Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary | Net Weight | 1.79 lb(US) (0.81 kg) |
Immunity to microbreaks | 1 ms | Dielectric strength | 1500 V primary/ground<br />1500 V primary/secondary |
IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Environmental characteristic | 3C3 IEC 60721-3-3<br />3C4 IEC 60721-3-3 | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 10…95 % without condensation |
Specifications may be subject to change without notice
