Product Model

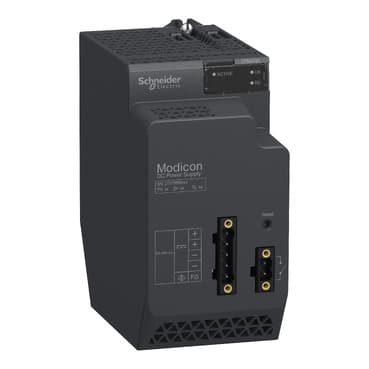

BMXCPS4022H
Selling Points
- 1Ensures continuous operation with dual power sources.
- 2Compatible with 24-48V DC input and 3.3-24V DC output.
- 3Features a MTBF of 752,000 hours for reliable performance.
- 4Designed to operate in harsh conditions with immunity to microbreaks and high dielectric strength.
- 5Offers advanced diagnostics via network for real-time monitoring and troubleshooting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Power supply module |
backplane compatibility | All backplane | Product Specific Application | For severe environments |
advanced diagnostics available via network | Temperature sensing<br />Uptime duration<br />Redundancy test<br />Remaining lifetime<br />Redundancy information | Primary Voltage | 24...48 V |
Supply circuit type | DC | Secondary power | 18 W 3.3 V DC -13…158 °F (-25…70 °C) I/O module logic power supply<br />40 W 24 V DC -13…158 °F (-25…70 °C) I/O module power supply and processor if 3.3 V not loaded |
Primary voltage limit | 18...62.4 V | Input current | 1.9 A 24 V<br />1 A 48 V |
Inrush current | 60 A 48 V<br />60 A 24 V | I²t on activation | 1 A².s 24 V<br />3 A².s 48 V |
It on activation | 0.3 A.s 24 V<br />0.4 A.s 48 V | MTBF reliability | 752000 H |
Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit | Current at secondary voltage | 5.5 A 3.3 V DC I/O module logic power supply<br />1.67 A 24 V DC I/O module power supply and processor |
Maximum power dissipation in W | 8.5 W | Status LED | 1 LED (Green) presence of voltages (OK)<br />1 LED (Green) redundancy OK<br />1 LED (Green) power supply status |
Control Type | RESET push-button cold restart | Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth |
Maximum cable distance between devices | 32.8 ft (10 m)<br />49.2 ft (15 m) | Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary |
Net Weight | 1.79 lb(US) (0.81 kg) | Immunity to microbreaks | 1 ms |
Dielectric strength | 1500 V primary/ground<br />1500 V primary/secondary | IP Degree of Protection | IP20 |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 |
Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />IEC 60079-0 | Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Relative humidity | 10…95 % without condensation | Protective treatment | Conformal coating |
Specifications may be subject to change without notice
