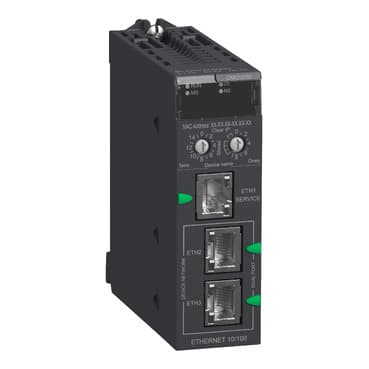

schneider BMXCRA31210C

Selling Points

  • 1High-Performance Ethernet RIO: The BMXCRA31210C supports Ethernet/IP for efficient data transfer and advanced communication.
  • 2Wide Temperature Range: Operates from -25 to 60 degrees Celsius, ensuring reliability in various industrial environments.
  • 3Advanced Local Signaling: Includes LED indicators for module status, network communication, and error detection.
  • 4Comprehensive Compatibility: Compatible with Modicon M580, Quantum Ethernet I/O, and M340 PAC systems.
  • 5Green Premium Certification: Meets Schneider Electric’s Green Premium standards for environmental sustainability and low-CO2 emissions.
Product Details
BMXCRA31210C
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon X80
Range Compatibility
Modicon M580<br />Modicon Quantum
Product or Component Type
Ethernet I/O head module
Device Application
X80 Ethernet RIO drop adaptor
Product Specific Application
For remote I/O modules
Bus type
Bus X across the remote backplane
Number of port
3
Integrated connection type
1 port service or distributed equipment<br />2 port Ethernet RIO Network (RSTP)
Communication Network Type
IPv4 (internet protocol)
communication port protocol
EtherNet/IP
Communication Service
Ethernet/IP adapter<br />RSTP (Ring topology support)<br />Ethernet RIO network<br />Quality of Service (QoS)<br />CIP Explicit messaging (server)<br />Modbus TCP server for module diagnostics<br />DHCP client<br />TFTP client<br />FTP client<br />FDR client<br />SNTP client<br />SNMP agent
Cybersecurity
Enable/disable communication ports<br />Syslog protocol support
Connector Type
3 RJ45
Exchange mode
Half duplex, full duplex, autonegotiation, auto MDIX
Transmission Rate
10/100 Mbit/s
Port Ethernet
10/100BASE-TX
Function Available
CCOTF (configuration change on the fly)<br />Input data is collected and published to the remote I/O head adaptor<br />Output modules are updated with the data received from remote I/O head adaptor<br />Diagnostics for remote I/O devices (Device DDT)<br />Port mirroring<br />System time stamping<br />Non-interfering type 1<br />I/O extension rack
Data recording
10 ms time stamps
Topology
Ring
Local signalling
for module active (RUN) 1 LED (green)<br /> for module error (ERR) 1 LED (red)<br /> for module status (Mod Status) 1 LED (green/red)<br /> for network communication status (Net Status) 1 LED (green/red)<br /> for Ethernet link diagnostics (STS) 1 LED (green)
current consumption
1200 mA
Input voltage
3.3 V DC
Product compatibility
0…1024 discrete channel<br />0…256 analog channel<br /> counter module<br /> time-stamping module<br /> SSI encoder interface module<br /> motion control module<br /> frequency input module<br /> AS-Interface module<br /> serial link module<br /> fiber converter modules
Module format
Standard
Net Weight
0.496 lb(US) (0.225 kg)
Maximum altitude transport
9842.5 ft (3000 m)
Relative Humidity
95 % without condensation
Fixing Mode
By screws
Mounting Mode
Rack-mounted
Width
1.3 in (32 mm)
Height
3.9 in (100 mm)
Depth
3.4 in (87.5 mm)
Protective treatment
Conformal coating
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive
Product certifications
CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22<br />Hazardous location class 1, division 2
Standards
EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0<br />UL 121201<br />CSA C22.2 No 213
Environmental characteristic
Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3
IP Degree of Protection
IP20
Ambient Air Temperature for Operation
-13…140 °F (-25…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Operating altitude
<= 6561.68 ft (2000 m)
