Product Model

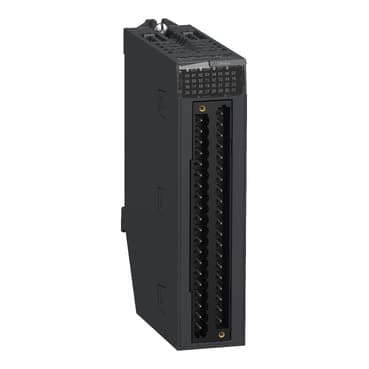

BMXDAI1614
Selling Points
- 116 Isolated Inputs: The BMXDAI1614 features 16 isolated inputs, ensuring reliable and precise data collection.
- 2100-120V AC Compatibility: Operates within a wide voltage range of 100 to 120V AC, making it versatile for various industrial applications.
- 3High Reliability: With an MTBF of 970,000 hours, this module offers exceptional reliability and durability.
- 4Fast Activation Time: The module activates in just 10 ms, providing quick response times for real-time control systems.
- 5IP20 Protection: Ensures protection against dust and water, meeting IP20 standards for industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Discrete input module |
Discrete input number | 16 | Discrete input type | Isolated |
input type | Capacitive | Discrete input voltage | 100...120 V AC |
Discrete input current | 2 mA | Input compatibility | 2-wire proximity sensor IEC 60947-5-2<br />2-wire proximity sensor IEC 61131-2 Type 1 |
Network Frequency | 50/60 Hz | Network frequency limits | 47…63 Hz |
Sensor power supply | 85...132 V | Current state 1 guaranteed | >= 2 mA |
Current state 0 guaranteed | <= 1 mA | input impedance | 14000 Ohm |
Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 5 W |
AC activation response time | 10 ms | AC deactivation response time | 20 ms |
Typical current consumption | 76 mA 3.3 V DC | MTBF reliability | 3700000 H |
Protection type | 1 external fuse per group of channel 0.25 A fast blow | Voltage detection threshold | < 40 V AC sensor fault<br />> 85 V AC sensor OK |
Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O | Net Weight | 0.346 lb(US) (0.157 kg) |
IP Degree of Protection | IP20 | Dielectric strength | 1780 V AC 50/60 Hz 1 min |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Relative humidity | 0…95 % 32…140 °F (0…60 °C) without condensation | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
