Product Model

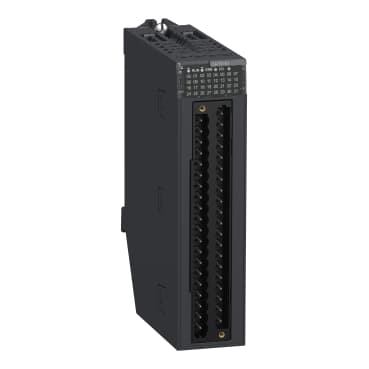

BMXDAI1614H
Selling Points
- 116 Isolated Inputs: Ensure reliable and secure data collection in harsh environments.
- 2100-120V AC Operation: Compatible with standard AC power requirements.
- 3Robust Protection: Equipped with external fuses and voltage detection for enhanced safety.
- 4Severe Environment Ready: Designed to withstand gas, dust, sand, and salt resistance.
- 5High MTBF Reliability: Offers a high Mean Time Between Failures (MTBF) of 3,700,000 hours.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Discrete input module |
Product Specific Application | For severe environments | Discrete input number | 16 |
Discrete input type | Isolated | input type | Capacitive |
Discrete input voltage | 100...120 V AC | Discrete input current | 2 mA |
Input compatibility | 2-wire proximity sensor IEC 60947-5-2<br />2-wire proximity sensor IEC 61131-2 Type 1 | Network Frequency | 50/60 Hz |
Network frequency limits | 47…63 Hz | Sensor power supply | 85...132 V |
Current state 1 guaranteed | >= 2 mA | Current state 0 guaranteed | <= 1 mA |
input impedance | 14000 Ohm | Insulation resistance | > 10 MOhm 500 V DC |
Power dissipation in W | 5 W | AC activation response time | 10 ms |
AC deactivation response time | 20 ms | Typical current consumption | 76 mA 3.3 V DC |
MTBF reliability | 3700000 H | Protection type | 1 external fuse per group of channel 0.25 A fast blow |
Voltage detection threshold | < 40 V AC sensor fault<br />> 85 V AC sensor OK | Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O |
Net Weight | 0.346 lb(US) (0.157 kg) | IP Degree of Protection | IP20 |
Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2 | Dielectric strength | 1780 V AC 50/60 Hz 1 min |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Relative humidity | 0…95 % -13…158 °F (-25…70 °C) without condensation | Protective treatment | Conformal coating |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
