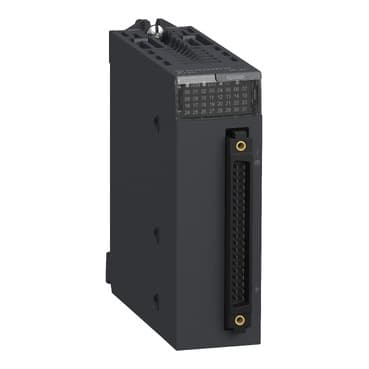

Product Model
BMXDDI3202K
Selling Points
- 1High-Performance Discrete Input Module: Equipped with 32 isolated inputs, each rated for 24 VDC positive voltage.
- 2Industrial Automation Compatibility: Designed for use with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2.
- 3Enhanced Reliability: Features a Mean Time Between Failures (MTBF) rating of 696,320 hours.
- 4Robust Design: Offers IP20 degree of protection against solid objects and dust, ensuring environmental robustness.
- 5Precise Data Handling: Does not allow input paralleling, ensuring precise data handling and reliability in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Discrete input module |
Discrete input number | 32 | Discrete input type | Isolated |
input type | Current sink (logic positive) | Discrete input voltage | 24 V DC positive |
Discrete input current | 2.5 mA | Input compatibility | With 2-wire/3-wire proximity sensors IEC 60947-5-2<br />With 2-wire/3-wire proximity sensors IEC 61131-2 Type 1 |
Sensor power supply | 19...30 V | Current state 1 guaranteed | >= 2 mA |
Current state 0 guaranteed | <= 0.5 mA | input impedance | 9600 Ohm |
Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 3.9 W |
DC typical response time | 4 ms | DC maximum response time | 7 ms |
Paralleling of inputs | No | Typical current consumption | 121 mA 3.3 V DC |
MTBF reliability | 905000 H | Protection type | 1 external fuse per group of channel 0.5 A fast blow<br /> reverse polarity protection |
Voltage detection threshold | < 14 V DC sensor fault<br />> 18 V DC sensor OK | Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O |
Net Weight | 0.247 lb(US) (0.112 kg) | IP Degree of Protection | IP20 |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Dielectric strength | 1500 V AC 50/60 Hz 1 minute, primary/secondary<br />500 V DC 1 minute, between group of channels |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Relative humidity | 5…95 % 131 °F (55 °C) without condensation | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
