Product Model

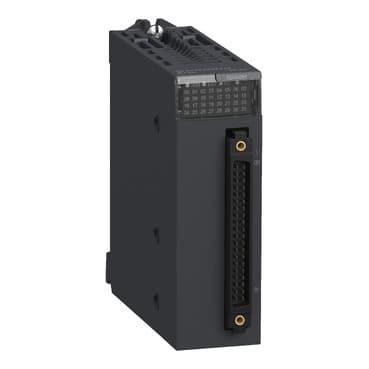

BMXDDI3202KH
Selling Points
- 1High-Density Design: Compact and efficient, ideal for space-constrained applications.
- 2Severe Environment Compatibility: Conformal coated PCB and IP20 protection ensure reliability in harsh conditions.
- 332 Isolated Digital Inputs: Each input is isolated, providing robust signal acquisition and protection.
- 424V DC Positive Logic: Compatible with 2-wire/3-wire proximity sensors, ensuring accurate signal processing.
- 5Technical Compatibility: Works seamlessly with Modicon M340 and M580 PLCs, enhancing system integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Discrete input module |
Product Specific Application | For severe environments | Discrete input number | 32 |
Discrete input type | Isolated | input type | Current sink (logic positive) |
Discrete input voltage | 24 V DC positive | Discrete input current | 2.5 mA |
Input compatibility | With 2-wire/3-wire proximity sensors IEC 60947-5-2<br />With 2-wire/3-wire proximity sensors IEC 61131-2 Type 1 | Sensor power supply | 19...30 V |
Current state 1 guaranteed | >= 2 mA | Current state 0 guaranteed | <= 0.5 mA |
input impedance | 9600 Ohm | Insulation resistance | > 10 MOhm 500 V DC |
Power dissipation in W | 3.9 W | DC typical response time | 4 ms |
DC maximum response time | 7 ms | Paralleling of inputs | No |
Typical current consumption | 121 mA 3.3 V DC | MTBF reliability | 905000 H |
Protection type | 1 external fuse per group of channel 0.5 A fast blow<br /> reverse polarity protection | Voltage detection threshold | < 14 V DC sensor fault<br />> 18 V DC sensor OK |
Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O | Net Weight | 0.247 lb(US) (0.112 kg) |
IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2 | Dielectric strength | 1500 V AC 50/60 Hz 1 minute, primary/secondary<br />500 V DC 1 minute, between group of channels |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Relative humidity | 5…95 % -13…158 °F (-25…70 °C) without condensation | Protective treatment | Conformal coating |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
