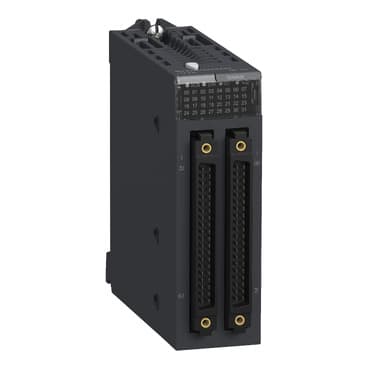

Product Model
BMXDDI6402K
Selling Points
- 164 Isolated Inputs: The BMXDDI6402K offers 64 isolated inputs for reliable and precise data collection.
- 224V DC Power: Operates on 24V DC, ensuring compatibility with various industrial systems.
- 34.3W Power Rating: Efficient power consumption of 4.3W, reducing energy costs and heat generation.
- 4Isolated Design: Isolated inputs protect against electrical noise and interference, ensuring accurate readings.
- 5Compact Design: Measures 3.93 in H x 6.29 in D, making it easy to integrate into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Discrete input module |
Discrete input number | 64 | Discrete input type | Isolated |
input type | Current sink (logic positive) | Discrete input voltage | 24 V DC positive |
Discrete input current | 0.6 mA | Sensor power supply | 19...30 V |
input impedance | 40000 Ohm | Insulation resistance | > 10 MOhm 500 V DC |
Power dissipation in W | 4.3 W | DC typical response time | 4 ms |
DC maximum response time | 7 ms | Paralleling of inputs | No |
Typical current consumption | 160 mA 3.3 V DC | MTBF reliability | 510000 H |
Protection type | 1 external fuse per group of channel 0.5 A fast blow<br /> without reverse polarity protection | Voltage detection threshold | < 14 V DC sensor fault<br />> 18 V DC sensor OK |
Status LED | 1 LED (Green) +32 channels indicator<br />1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O | Net Weight | 0.320 lb(US) (0.145 kg) |
IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Dielectric strength | 1500 V AC 50/60 Hz 1 minute, primary/secondary<br />500 V DC 1 minute, between group of channels | Vibration resistance | 3 gn |
Shock resistance | 30 gn | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
