Product Model

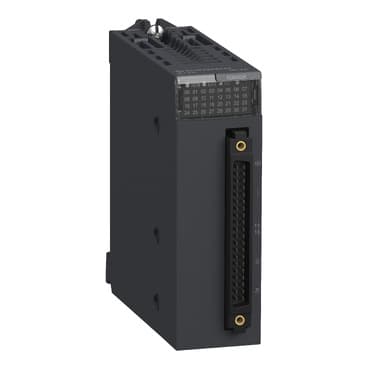

BMXDDM3202K
Selling Points
- 1MTBF of 650,614 hours ensures long-lasting performance in demanding industrial environments.
- 2Dimensions 3.93 in H x 6.29 in D, making it easy to integrate into various industrial settings.
- 3Compatible with 2-wire/3-wire proximity sensors and supports both positive and negative logic.
- 4Equipped with external fuses, overvoltage protection, and reverse polarity protection for enhanced safety.
- 51.2 ms response time on output ensures quick and reliable data processing in real-time applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Discrete I/O module |
Discrete input number | 16 | input type | Current sink (logic positive) |
Discrete input voltage | 24 V DC positive | Discrete input current | 2.5 mA |
Discrete output number | 16 | Discrete output type | Solid state |
Discrete output voltage | 24 V 19...30 V DC | Discrete output current | 0.1 A |
Input compatibility | With 2-wire/3-wire proximity sensors IEC 60947-5-2<br />With 2-wire/3-wire proximity sensors IEC 61131-2 Type 1 | Sensor power supply | 19...30 V |
Current state 1 guaranteed | >= 2 mA | Current state 0 guaranteed | <= 0.5 mA |
Current per channel | 0.125 A | Maximum current per module | 3.2 A |
Maximum leakage current | 0.1 mA at state 0 | Maximum voltage drop | <1.5 V at state 1 |
input impedance | 9600 Ohm | Insulation resistance | > 10 MOhm 500 V DC |
Power dissipation in W | 4 W | DC typical response time | 4 ms |
DC maximum response time | 7 ms | Response time on output | 1.2 ms |
Paralleling of outputs | Yes : 3 maximum | Typical current consumption | 69 mA 24 V DC<br />125 mA 3.3 V DC |
Current consumption | <= 104 mA 24 V DC<br /><= 166 mA 3.3 V DC | MTBF reliability | 430000 H |
Protection type | 1 external fuse per group of input channel 0.5 A fast blow<br /> overvoltage protection on output<br /> reverse polarity protection on input<br /> reverse polarity protection on output | Output overload protection | With electronic circuit breaker 0.125 A < Id < 0.185 A<br />With current limiter |
Output overvoltage protection | With transil diode | Output short-circuit protection | With 2 A external fuse |
Reverse polarity protection | Reverse mounted diode | Voltage detection threshold | < 14 V DC preactuator fault<br />< 14 V DC sensor fault<br />> 18 V DC preactuator OK<br />> 18 V DC sensor OK |
Maximum tungsten load | 1.2 W | Switching frequency | 0.5/LI² Hz |
Maximum overload time | 15 ms | Load impedance ohmic | <= 220 Ohm |
Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O | Net Weight | 0.24 lb(US) (0.11 kg) |
IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Dielectric strength | 1500 V AC 50/60 Hz 1 minute, output/ground<br />1500 V AC 50/60 Hz 1 minute, output/internal logic<br />1500 V AC 50/60 Hz 1 minute, primary/secondary<br />500 V DC 1 minute, between group of inputs and outputs | Vibration resistance | 3 gn |
Shock resistance | 30 gn | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
