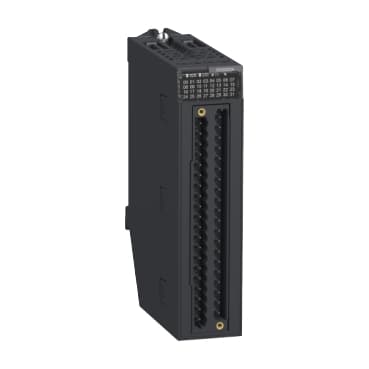

Product Model
BMXDDO3202H
Selling Points
- 132 Isolated Discrete Inputs: Equipped with 32 isolated discrete input channels for robust performance in industrial settings.
- 224V DC Positive Logic: Operates on a 24V DC positive voltage supply, ensuring reliable operation.
- 3High MTBF Rating: Demonstrates outstanding reliability with a Mean Time Between Failures (MTBF) rating of 905,000 hours.
- 4IEC Compliance: Compatible with 2-wire and 3-wire proximity sensors conforming to IEC 60947-5-2 and IEC 61131-2 Type 1 standards.
- 5Enhanced Safety Features: Includes external fuses per group of channels rated at 0.5 A fast blow and reverse polarity protection for enhanced safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Discrete output module |
Product Specific Application | For severe environments | Discrete output number | 32 EN/IEC 61131-2 |
Discrete output type | Solid state | Discrete output logic | Positive |
Discrete output voltage | 12...24 V 10.8...30 V DC | Discrete output current | 0.5 A |
Current per channel | 0.55 A | Maximum current per module | 17.6 A |
Maximum leakage current | 0.1 mA at state 0 | Maximum voltage drop | <1.2 V at state 1 |
Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 4.8 W |
Response time on output | 0.3 ms | Paralleling of outputs | Yes : 3 maximum |
Typical current consumption | 56 mA 3.3 V DC | MTBF reliability | 833000 H |
Protection type | External fuse reverse polarity protection<br /> short-circuit protection<br /> overload protection<br /> overvoltage protection | Output overload protection | With electronic circuit breaker 1.5 In < Id < 2 In<br />With current limiter |
Output overvoltage protection | With transil diode | Output short-circuit protection | With external fuse |
Reverse polarity protection | Reverse mounted diode | Voltage detection threshold | < 14 V DC preactuator fault<br />> 18 V DC preactuator at state 0 |
Maximum tungsten load | 6 W 24 V<br />3 W 12 V | Switching frequency | 0.5/LI² Hz |
Load impedance ohmic | > 54.54 Ohm | Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O |
Net Weight | 5.08 oz (143.92 g) | IP Degree of Protection | IP20 |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2 |
Dielectric strength | 1780 V AC 50/60 Hz 1 minute, output/ground<br /> 1 minute, output/internal logic | Vibration resistance | 3 gn |
Shock resistance | 30 gn | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
Protective treatment | Conformal coating | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
