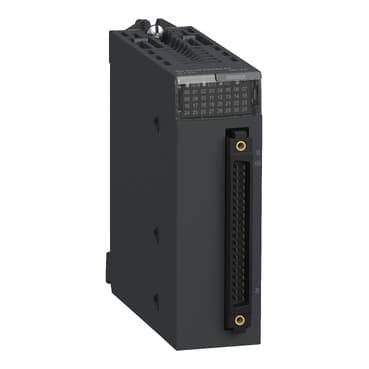

Product Model
BMXDDO3202K
Selling Points
- 132 Solid-State Outputs: The BMXDDO3202K features 32 discrete outputs with positive logic, ensuring reliable operation in various industrial settings.
- 224V DC Positive Logic: Operates at 24V DC positive logic, providing a stable voltage supply for your automation needs.
- 3High MTBF Reliability: Offers a Mean Time Between Failures (MTBF) of 360,412 hours, ensuring long-lasting performance and minimal downtime.
- 4Comprehensive Protection: Equipped with external short-circuit protection, overload protection, overvoltage protection, and reverse polarity protection for enhanced safety.
- 5IP20 Rated for Durability: Meets IP20 standards for environmental protection, suitable for use in various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Discrete output module |
Discrete output number | 32 EN/IEC 61131-2 | Discrete output type | Solid state |
Discrete output logic | Positive | Discrete output voltage | 24 V 19...30 V DC |
Discrete output current | 0.1 A | Current per channel | 0.125 A |
Maximum current per module | 3.2 A | Maximum leakage current | 0.1 mA at state 0 |
Maximum voltage drop | <1.5 V at state 1 | Insulation resistance | > 10 MOhm 500 V DC |
Power dissipation in W | 3.6 W | Response time on output | 1.2 ms |
Paralleling of outputs | Yes : 3 maximum | Typical current consumption | 125 mA 3.3 V DC |
MTBF reliability | 290000 H | Protection type | External fuse reverse polarity protection<br /> short-circuit protection<br /> overload protection<br /> overvoltage protection |
Output overload protection | With current limiter<br />With electronic circuit breaker 0.125 A < Id < 0.185 A | Output overvoltage protection | With transil diode |
Output short-circuit protection | With 2 A external fuse | Reverse polarity protection | Reverse mounted diode |
Voltage detection threshold | < 14 V DC preactuator fault<br />> 18 V DC preactuator at state 0 | Maximum tungsten load | 1.2 W |
Switching frequency | 0.5/LI² Hz | Maximum overload time | 15 ms |
Load impedance ohmic | >= 220 Ohm | Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O |
Net Weight | 0.24 lb(US) (0.11 kg) | IP Degree of Protection | IP20 |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Dielectric strength | 1500 V AC 50/60 Hz 1 minute, output/ground<br />1500 V AC 50/60 Hz 1 minute, output/internal logic<br />500 V DC 1 minute, between group of channels |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Relative humidity | 5…95 % 131 °F (55 °C) without condensation | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
